FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION


id091000800600


Type A

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
(2)  Front energy-absorbing form (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION.)

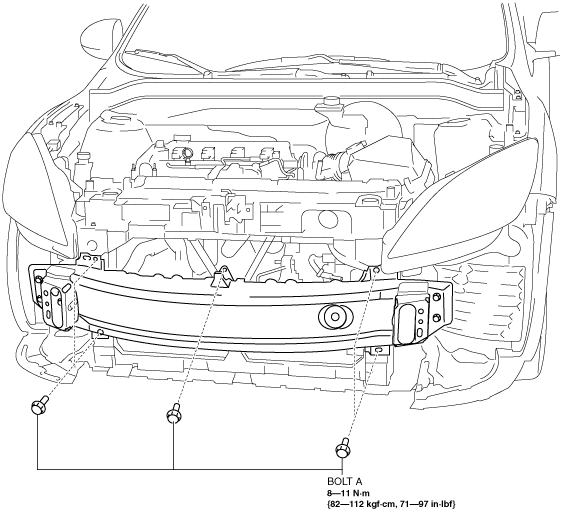

3.  Remove the bolts A.

am3zzw00006419

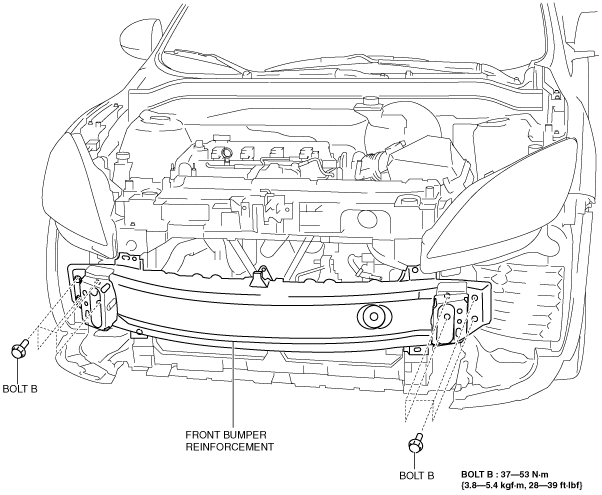

4.  Remove the bolts B.

am3zzw00006420

5.  Remove the front bumper reinforcement.

6.  Install in the reverse order of removal.


Type B

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the following parts:

(1)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)
(2)  Seal plate (See SEAL PLATE REMOVAL/INSTALLATION.)

3.  Remove the bolts A.

am3uuw00003634

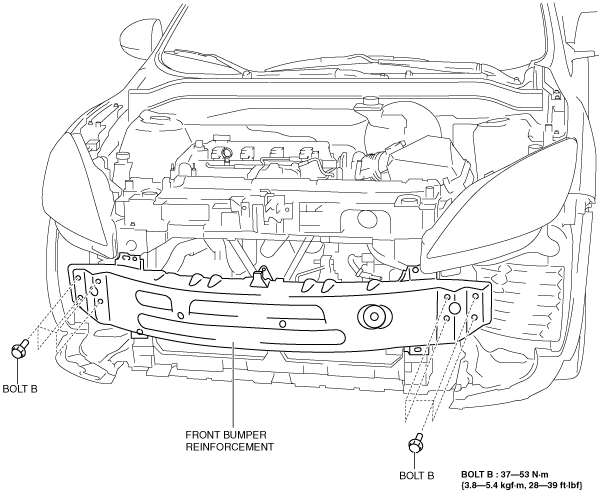

4.  Remove the bolts B.

am3uuw00003635

5.  Remove the front bumper reinforcement.

6.  Install in the reverse order of removal.
