BUMPER STIFFENER LOWER REMOVAL/INSTALLATION

id091000888900

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the bolts.

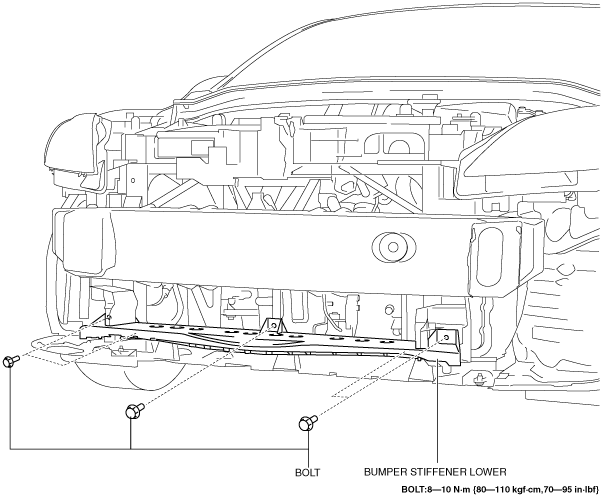

am3uuw00003892

4.  Move the bumper stiffener lower in the direction of the arrow shown in the figure, while remove the hooks.

am3uuw00003893

5.  Install in the reverse order of removal.
