FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION

id091300911700

Warning

•  Handling a front seat (with built-in side air bag) improperly can accidentally operate (deploy) the air bag, which may seriously injure you. Read the service warnings before handling a front seat (with built-in side air bag). (See AIR BAG SYSTEM SERVICE WARNINGS.)

Caution

•  After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

•  Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

1.  Switch the ignition to off.

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Disconnect the negative battery cable and wait 1 min or more. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

4.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Remove the side cover. (See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITH POWER SEAT SYSTEM].)(See FRONT SEAT COVER REMOVAL/INSTALLATION [VEHICLES WITHOUT POWER SEAT SYSTEM].)

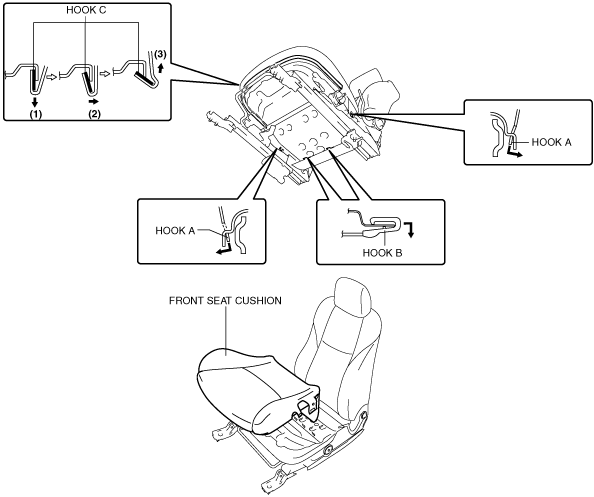

6.  Detach hook A and B in the direction of the arrow shown in the figure.

7.  Detach hook C by sliding it in the order of (1), (2), and (3) as shown in the figure.

8.  Remove the seat cushion trim and the seat cushion pad from the seat frame as a single unit.

am3zzw00006531

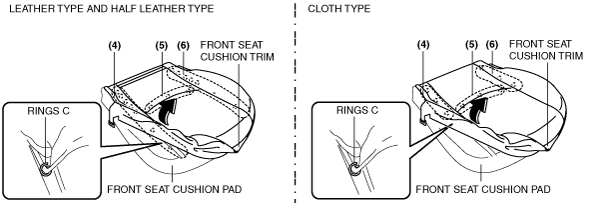

9.  Remove rings C in the order of (4), (5), and (6) as shown in the figure, then remove the seat cushion trim from the seat cushion pad in the direction of the arrow shown in the figure.

Vehicle identification number

•  JMZ BL12F6*#:500001—539738, JMZ BL12F7*#:500001—539738, JMZ BL12Z2*#:500001—539738, JMZ BL12Z5*#:500001—539738, JMZ BL14F6*#:500001—539738, JMZ BL14F7*#:500001—539738, JMZ BL14Z2*#:500001—539738, JMZ BL14Z5*#:500001—539738, JMZ BLA2Y6*#:500001—539738, JMZ BLA4Y6*#:500001—539738, JMZ BLB2F7*#:500001—539738, JMZ BLB2G6*#:500001—539738, JMZ BLB2Y6*#:500001—539738, JMZ BLB4Y6*#:500001—539738, JMZ BLB2Z2*#:500001—539738, JMZ BLB2Z5*#:500001—539738, JMZ BLB436*#:500001—, JMZ BLB4A6*#:500001—539738, JMZ BLB4C6*#:500001—539738, JMZ BLB4F7*#:500001—539738, JMZ BLB4G6*#:500001—539738, JMZ BLB4Z2*#:500001—539738, JMZ BLB4Z5*#:500001—539738, JM0 BL103200:300001—, JM0 BL107200:300001—341909, JM0 BL10C200:300001—341909, JM0 BL10F200:300001—341909, JM0 BL10L200:300001—341909, JM6 BL1032*0:300001—, JM6 BL1052*0:300001—341882, JM6 BL1072*0:300001—341882, JM6 BL10F2*0:300001—341882, JM6 BL10L2*0:300001—341882, JM6 BL10Z2*0:300001—341882, JM7 BL12F*#:300001—341882, JM7 BL12Z*#:300001—341882, JM7 BL14F*#:300001—341882, JM7 BL14Z*#:300001—341882, JM7 BL1HZ*#:300001—341882, JM7 BL1SZ*#:300001—341882, JM7 BL22F*#:300001—341882, JM7 BL22Z*#:300001—341882, JM7 BL24F*#:300001—341882, JM7 BL24Z*#:300001—341882, JM7 BL2HZ*#:300001—341882, JM7 BL2SZ*#:300001—341882, BL10F2:200001—341882, BL10Z2:200001—341882

am3zzw00013342

Vehicle identification number

•  JMZ BL12F6*#:539739—, JMZ BL12F7*#:539739—, JMZ BL12Z2*#:539739—, JMZ BL12Z5*#:539739—, JMZ BL14F6*#:539739—, JMZ BL14F7*#:539739—, JMZ BL14Z2*#:539739—, JMZ BL14Z5*#:539739—, JMZ BLA2Y6*#:539739—, JMZ BLA4Y6*#:539739—, JMZ BLB2F7*#:539739—, JMZ BLB2G6*#:539739—, JMZ BLB2Y6*#:539739—, JMZ BLB4Y6*#:539739—, JMZ BLB2Z2*#:539739—, JMZ BLB2Z5*#:539739—, JMZ BLB4A6*#:539739—, JMZ BLB4C6*#:539739—, JMZ BLB4F7*#:539739—, JMZ BLB4G6*#:539739—, JMZ BLB4Z2*#:539739—, JMZ BLB4Z5*#:539739—, JM0 BL107200:341910—, JM0 BL10C200:341910—, JM0 BL10F200:341910—, JM0 BL10L200:341910—, JM7 BL12F*#:341883—, JM7 BL12Z*#:341883—, JM7 BL14F*#:341883—, JM7 BL14Z*#:341883—, JM7 BL1HZ*#:341883—, JM7 BL1SZ*#:341883—, JM7 BL22F*#:341883—, JM7 BL22Z*#:341883—, JM7 BL24F*#:341883—, JM7 BL24Z*#:341883—, JM7 BL2HZ*#:341883—, JM7 BL2SZ*#:341883—, BL10F2:341883—, BL10Z2:341883—, JM6 BL1052*0:341883—, JM6 BL1072*0:341883—, JM6 BL10F2*0:341883—, JM6 BL10L2*0:341883—, JM6 BL10Z2*0:341883—

am3zzw00013337

10.  Install in the reverse order of removal.
