KEYLESS BEEPER REMOVAL/INSTALLATION

id091400515000

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Slightly bend back the front mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

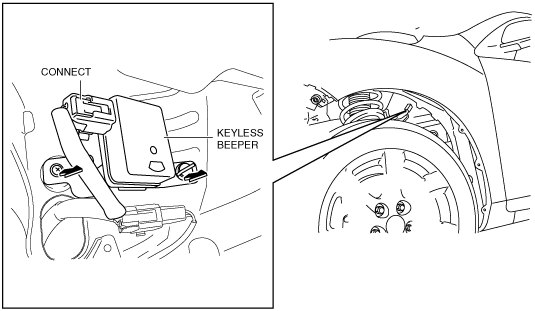

am3zzw00011870

4.  Remove the keyless beeper in the direction of the arrow shown in the figure.

5.  Install in the reverse order of removal.
