REQUEST SWITCH REMOVAL/INSTALLATION

id091400515200

Front Outer Handle

Note

•  The request switches are built into the front outer handles. (See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)

am3uuw00004548

Liftgate

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the inboard light. (See INBOARD LIGHT REMOVAL/INSTALLATION.)

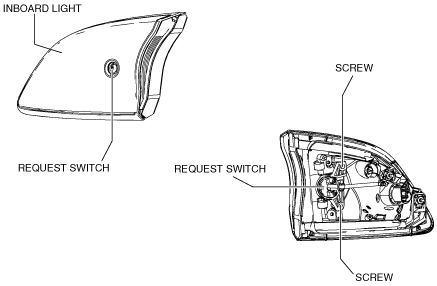

3.  Remove the screws.

am3uuw00004385

4.  Remove the request switch.

5.  Install in the reverse order of removal.
