DOOR SASH FILM INSTALLATION
id091600805300

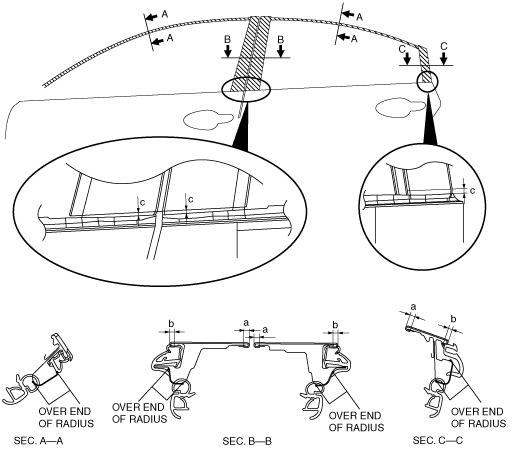

1. Remove any grease or dirt from the affixing surface of the door.
2. Cut away the unused portion along the dotted lines.
3. Peel off the backing paper and attach the door sash film onto the door as shown in the figure.
-
Standard clearance
-
a: 3.0—5.0 mm {0.12—0.19 in}
b: 3.0 mm or more {0.12 in or more}
c: 4.0—6.0 mm {0.16—0.23 in}
4. Peel off the transparent protective film on the door sash film.
5. Install the following parts:
- (1) Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)
- (2) Front beltline molding (See FRONT BELTLINE MOLDING REMOVAL/INSTALLATION.)
- (3) Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION.)
- (4) Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
- (5) Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
- (6) Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
- (7) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
- (8) Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)
