FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

id091800800700

Warning

•  Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

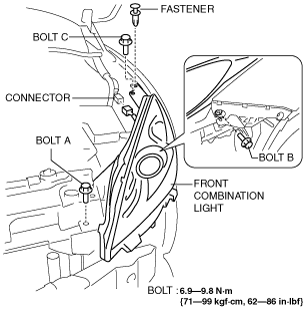

3.  Disconnect the connector.

am3zzw00017068

4.  Remove the bolt A.

5.  Remove the bolt B.

6.  Remove the bolt C.

7.  Remove the fastener.

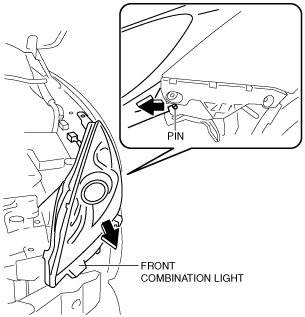

8.  Pull the front combination light in the direction of the arrow shown in the figure and remove the pin from the body.

am3zzw00017069

9.  Remove the front combination light.

10.  Remove the bolts D.

am3uuw00007112

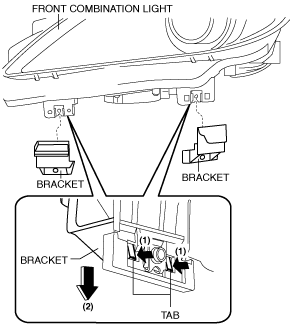

11.  Remove the bracket in the direction of the arrow (2) shown in the figure while pressing the bracket tabs in the direction of the arrow (1).

am3zzw00012255

12.  Install in the reverse order of removal.(See Front combination light installation note.)

13.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)

Front combination light installation note

Caution

•  When replacing the front combination light, refer to the following disassembly figure and verify that parts are assembled correctly. If a part has not been assembled correctly, it could cause problems such as water leakage or fogging in the housing.

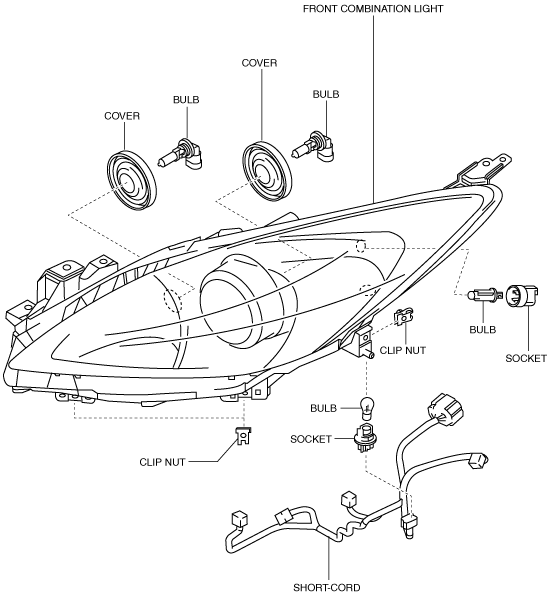

Halogen type

am3zzw00017070

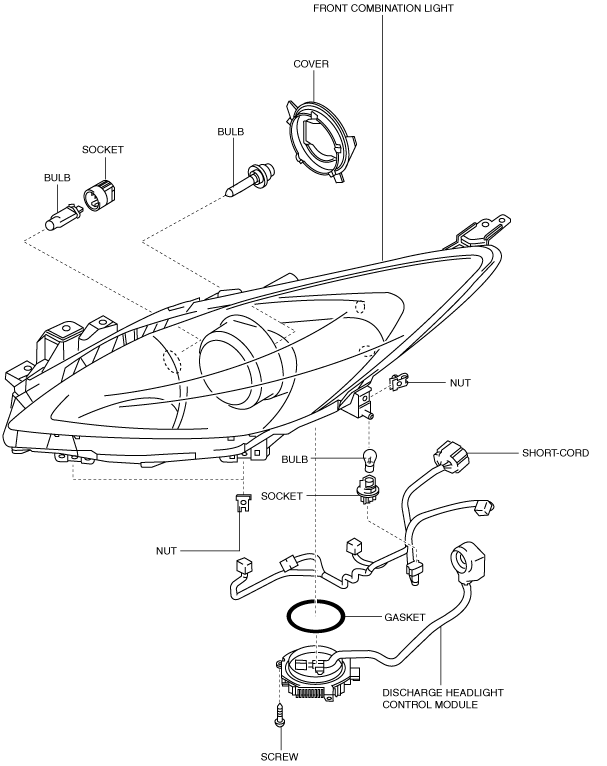

Discharge type

am3zzw00017071

Note

•  Parts necessary for assembly vary depending on the vehicle's manufacturing period and specifications.
