FRONT FOG LIGHT BULB REMOVAL/INSTALLATION

id091800802300

Except Mazdaspeed3

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2. Slightly bend back the mudguard. (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

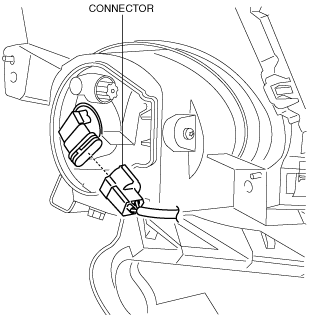

3. Disconnect the connector.

am3zzw00011316

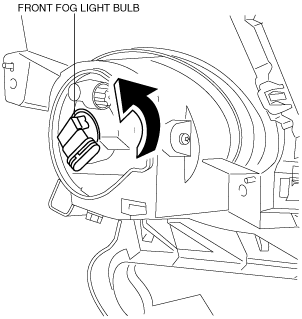

4. Rotate the front fog light bulb in the direction of the arrow shown in the figure.

am3zzw00011317

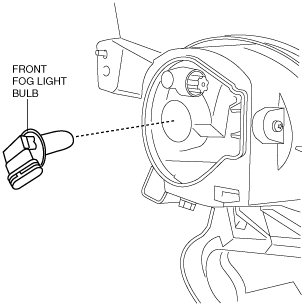

5. Remove the front fog light bulb.

am3zzw00011318

Caution

• A halogen bulb generates extremely high heat when it is used. If the surface of the bulb is soiled, excessive heat will build up and the light’s life will be shortened. When replacing the bulb, hold the metal flange, not the glass.

6. Install in the reverse order of removal.

Mazdaspeed3

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
