SIDE TURN LIGHT REMOVAL/INSTALLATION

id091800811500

Front Fender Panel Type

1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

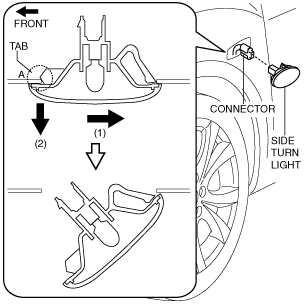

2. Move the side turn light in the direction of the arrow (1) and detach the tab.

am3zzw00011642

3. Pull area A of the side turn light in the direction of the arrow (2) and remove the side turn light.

4. Disconnect the connector.

5. Remove the side turn light.

6. Install in the reverse order of removal.

Power Outer Mirror Type

2. Remove the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL.) (See OUTER MIRROR GLASS INSTALLATION.)

3. Remove the outer mirror garnish. (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

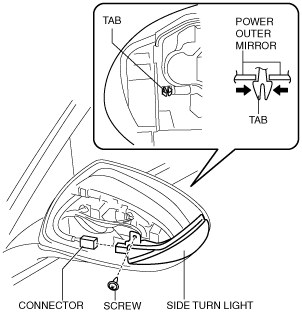

4. Remove the screw.

am3uuw00007127

5. Disconnect the connector.

6. Remove the side turn light while detaching tab.

Caution

• If the tabs of the side turn light are detached, the side turn light may fall off and be damaged. When detaching the tabs of the side turn light, hold the side turn light with a hand during the servicing.

7. Install in the reverse order of removal.
