WASHER TANK REMOVAL/INSTALLATION

id091900801700

Vehicles With The Washer Fluid-level Sensor

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

am3zzw00011655

1	Washer motor connector
2	Windshield washer hose
3	Rear washer hose (5HB)
4	Washer fluid-level sensor connector
5	Headlight cleaner motor connector
6	Bolt
7	Nut
8	Hook
9	Washer tank

4.  Install in the reverse order of removal.

Vehicles Without The Washer Fluid-level Sensor

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].) (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].) (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].) (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].) (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

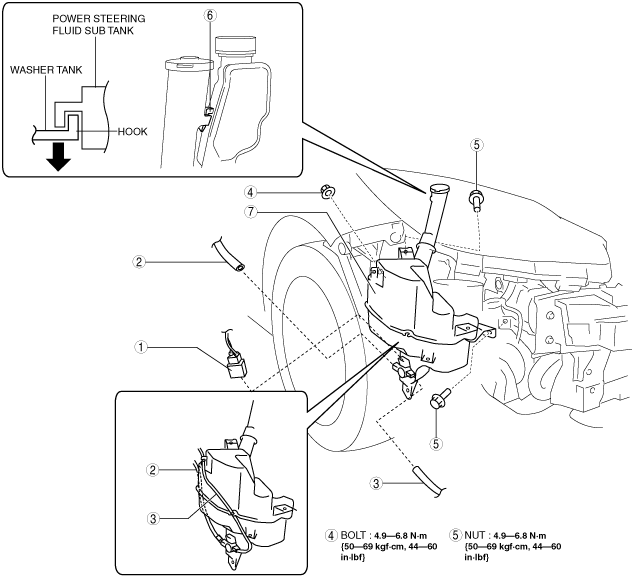

am3zzw00011656

1	Washer motor connector
2	Windshield washer hose
3	Rear washer hose (5HB)
4	Nut
5	Bolt
6	Hook
7	Washer tank

4.  Install in the reverse order of removal.
