FRONT DOOR SPEAKER REMOVAL/INSTALLATION

id092000802200

1.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

2.  Remove the inner garnish. (See INNER GARNISH REMOVAL/INSTALLATION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

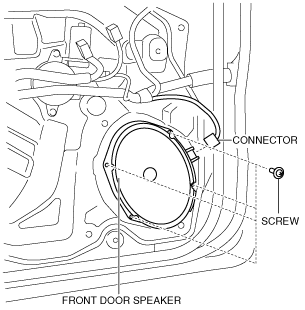

Without Bose^®

am3uuw00002696

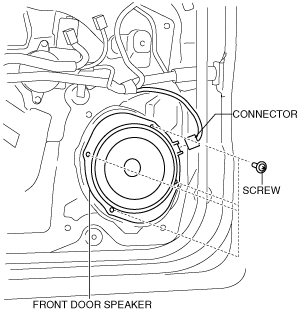

With Bose^®

am3uuw00002695

5.  Remove the screw.

6.  Remove the front door speaker in the direction of the arrow shown in the figure.

Without Bose^®

am3uuw00002698

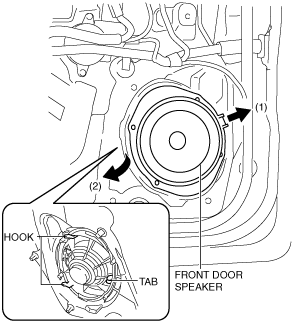

With Bose^®

am3uuw00002697

7.  Install in the reverse order of removal.
