FRONT FOG LIGHT RELAY REMOVAL/INSTALLATION

id092100665400

1.  Disconnect the negative battery cable.

(See BATTERY REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5].)

(See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
(See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)
(See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)
(See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)
(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
(See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Remove the front mudguard.(RH) (See FRONT MUDGUARD REMOVAL/INSTALLATION.)

3.  Remove the front fog light relay case.

am3zzw00013017

4.  Remove the cover.

5.  Remove the front fog light relay.

6.  Install in the reverse order of removal. (See Front Fog Light Relay Installation Note.)


Front Fog Light Relay Installation Note

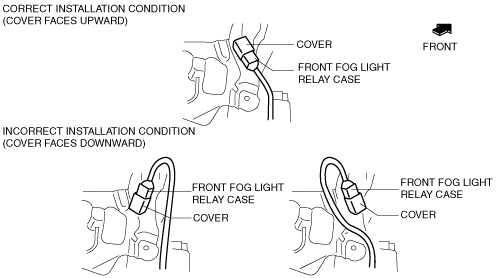

1.  Install the front fog light relay case to the shroud panel with the front fog light relay cover facing upward.

Caution
•  If the front fog light relay case is installed to the shroud panel with the cover downward, water may penetrate the cover and the front fog light relay may not operate normally. Install the front fog light relay case with the cover facing upward.
am3zzw00013018
