INSTRUMENT CLUSTER

id092200018500

Outline

• The following systems has been added to the instrument cluster:

― Low engine coolant temperature indicator light (blue)/high engine coolant temperature warning light (red)

― Malfunction warning light

― Intelligent drive master gauge (i-DM gauge)(SKYACTIV-G 2.0)

― ECO gauge (MZR 1.5)

― Gear shift indicator (MTX)

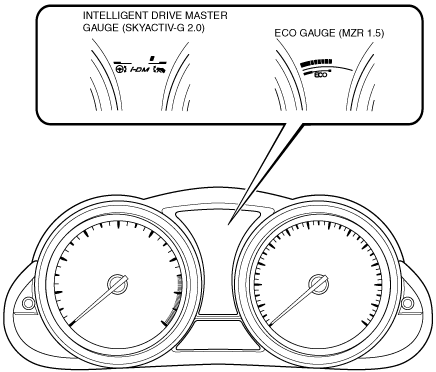

Meter And Gauge

am3uun00001625

Warning And Indicator Light

am3uun00001559

—: Not applicable

×: Applicable

No.	Name	Warning/Indicator light illumination at initial check	Reference
1	Malfunction warning light	×	(See MALFUNCTION WARNING LIGHT.)
2	Gear shift indicator	—	(See GEAR SHIFT INDICATOR [MZR-CD 2.2].) (See GEAR SHIFT INDICATOR [MZR 2.0 DISI i-stop].) (See GEAR SHIFT INDICATOR [MZR 1.6].)
3	Low engine coolant temperature indicator light (blue)	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED) [SKYACTIV-G 2.0].)
4	High engine coolant temperature warning light	×	(See LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE)/HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED) [SKYACTIV-G 2.0].)

Function

ECO Gauge

• Displays the ECO gauge. (See ECO GAUGE [MZR 1.5].)

i-DM Gauge

• Displays the i-DM gauge. (See INTELLIGENT DRIVE MASTER (i-DM).)
