EXTRACTOR CHAMBER REMOVAL/INSTALLATION

1. Remove the following parts:

(1) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2) Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(3) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(4) Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(5) Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

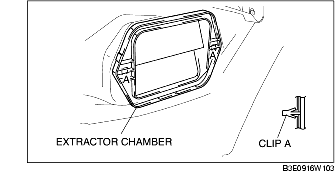

2. Detach clips A by squeezing them from inside the vehicle, and remove the extractor chamber from the body.

3. Install in the reverse order of removal.
