HEAD IMPACT PAD REMOVAL/INSTALLATION

1. Remove the following parts:

(1) Console (4SD) (See CONSOLE REMOVAL/INSTALLATION.)

(2) A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

(3) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(4) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(5) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)

(6) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

(7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)

(8) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(9) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(10) Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(11) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(12) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)

(13) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)

(14) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(15) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

2. Remove the fastener. (Rear)

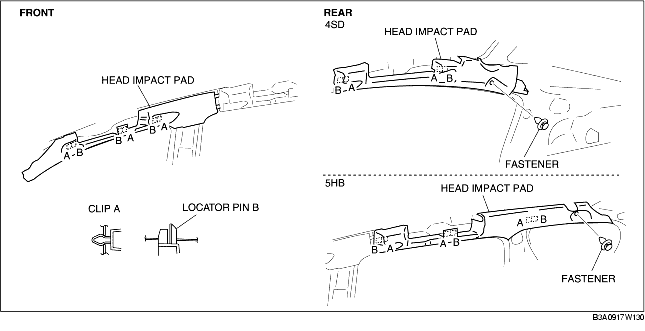

3. Pull the head impact pad outward and detach the clips A and the locator pins B.

4. Remove the head impact pad.

5. Install in the reverse order of removal.
