IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:

(1) Front scuff plate (driver's side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Front side trim (driver's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(4) Column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

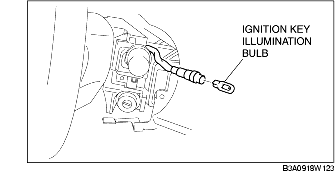

3. Remove the ignition key illumination bulb.

4. Install in the reverse order of removal.
