OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 2.0, MZR 2.5]

id011005801306

1.  Disconnect the negative battery cable.

2.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

3.  Disconnect the wiring harness.

4.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

5.  Disconnect the ventilation hose from the cylinder head cover.

6.  Remove the dipstick.

7.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].)

8.  Remove in the order indicated in the table.

9.  Install in the reverse order of removal.

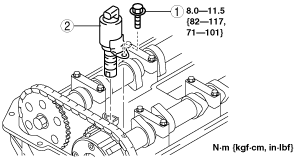

am6zzw00005145

1	OCV installation bolt
2	OCV
