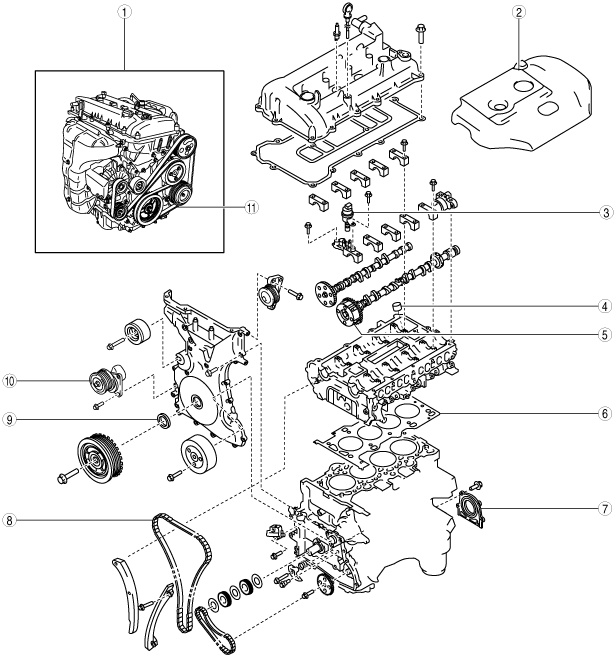

ENGINE LOCATION INDEX [MZR 2.0 DISI]

id011007800100

am6zzw00006005

1	Engine (See COMPRESSION INSPECTION [MZR 2.0 DISI].) (See ENGINE REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See ENGINE TUNE-UP [MZR 2.0 DISI].)
2	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0 DISI].)
3	OCV (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See OIL CONTROL VALVE (OCV) INSPECTION [MZR 2.0 DISI].)
4	Tappet (See VALVE CLEARANCE INSPECTION [MZR 2.0 DISI].) (See VALVE CLEARANCE ADJUSTMENT [MZR 2.0 DISI].)
5	Variable valve timing actuator (See VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See VARIABLE VALVE TIMING ACTUATOR INSPECTION [MZR 2.0 DISI].)
6	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT [MZR 2.0 DISI].)
7	Rear oil seal (See REAR OIL SEAL REPLACEMENT [MZR 2.0 DISI].)
8	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 2.0 DISI].)
9	Front oil seal (See FRONT OIL SEAL REPLACEMENT [MZR 2.0 DISI].)
10	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION [MZR 2.0 DISI].) (See ENGINE DISASSEMBLY/ASSEMBLY [MZR 2.0 DISI].)
11	Drive belt (See DRIVE BELT INSPECTION [MZR 2.0 DISI].) (See DRIVE BELT REMOVAL/INSTALLATION [MZR 2.0 DISI].)
