FUEL SYSTEM LOCATION INDEX [MZR 2.0 DISI]

id0114d4800100

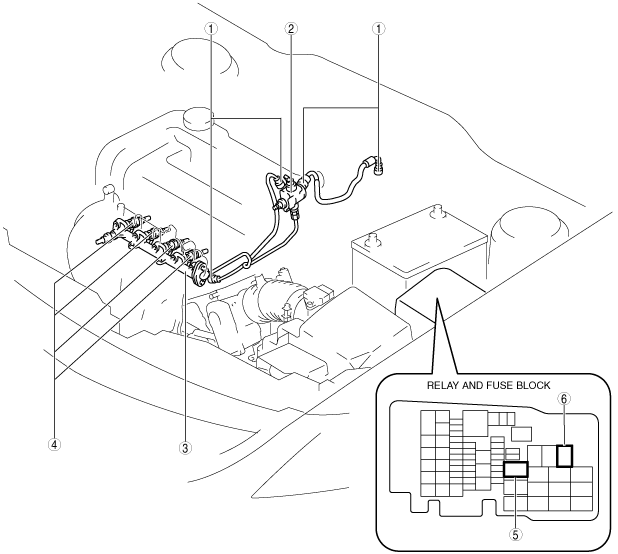

Engine Compartment Side

am6zzw00005699

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI].)
2	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See HIGH PRESSURE FUEL PUMP INSPECTION [MZR 2.0 DISI].)
3	Fuel delivery pipe (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI].)
4	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See FUEL INJECTOR INSPECTION [MZR 2.0 DISI].)
5	Fuel pump relay (See RELAY INSPECTION.)
6	Fuel injector relay (See RELAY INSPECTION.)

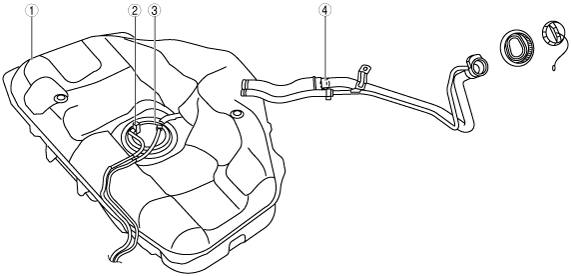

Fuel Tank Side

am6zzw00007360

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See FUEL TANK INSPECTION [MZR 2.0 DISI].)
2	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.0 DISI].)
3	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [MZR 2.0 DISI].) (See FUEL PUMP UNIT INSPECTION [MZR 2.0 DISI].)
4	Nonreturn valve (See FUEL TANK REMOVAL/INSTALLATION [MZR 2.0 DISI].) (See NONRETURN VALVE INSPECTION [MZR 2.0 DISI].)
