EMISSION SYSTEM LOCATION INDEX [MZR 1.8, MZR 2.0, MZR 2.5]

id0116d3803700

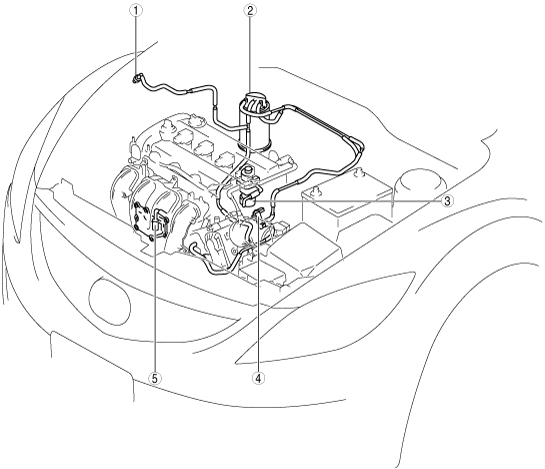

Engine Compartment Side

L.H.D.

am6zzw00005708

1	Evaporative gas check valve (one-way) (See EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See CHARCOAL CANISTER INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
3	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See EGR VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
4	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See PURGE SOLENOID VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
5	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)

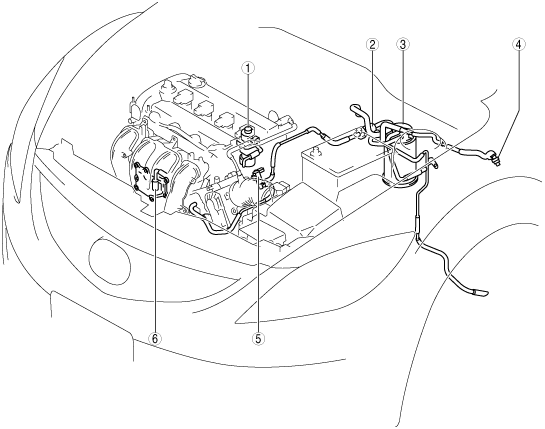

R.H.D.

am6zzw00005709

1	EGR valve (See EGR VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See EGR VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
2	Catch tank (See CATCH TANK REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See CATCH TANK INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
3	Charcoal canister (See CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See CHARCOAL CANISTER INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
4	Evaporative gas check valve (one-way) (See EVAPORATIVE GAS CHECK VALVE (ONE-WAY) INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
5	Purge solenoid valve (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See PURGE SOLENOID VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
6	PCV valve (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See POSITIVE CRANKCASE VENTILATION (PCV) VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)

Exhaust System Side

MZR 1.8, MZR 2.0

am6zzw00000233

1

TWC

MZR 2.5

am6zzw00000234

1	WU-TWC
2	TWC

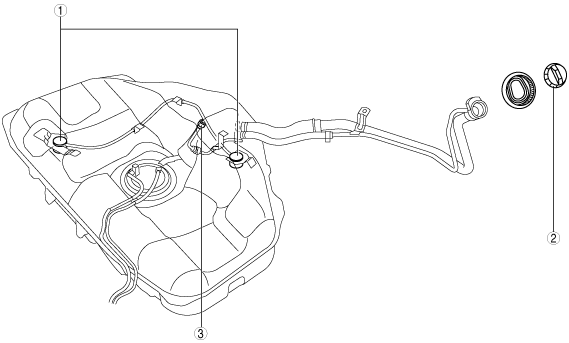

Fuel Tank Side

am6zzw00002584

1	Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See ROLLOVER VALVE INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
2	Fuel-filler cap
3	Check valve (two-way) (See CHECK VALVE (TWO-WAY) REMOVAL/INSTALLATION [MZR 1.8, MZR 2.0, MZR 2.5].) (See CHECK VALVE (TWO-WAY) INSPECTION [MZR 1.8, MZR 2.0, MZR 2.5].)
