DTC C0040:13/C0040:64 [ABS]

id0402a7879900

DTC

C0040:13/C0040:64

Brake switch

DETECTION CONDITION

•  C0040:13

―  Open circuit in the wiring harness between the ABS HU/CM terminal and the brake switch terminal

•  C0040:64

―  Brake switch ON signal is input for 15 min or more when driving at a vehicle speed of 15 km/h {9.3 mph} or more.

POSSIBLE CAUSE

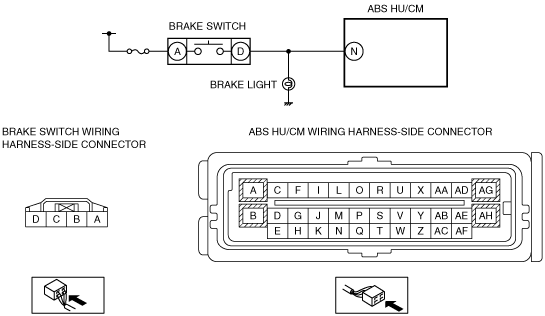

•  Open or short circuit in wiring harness between the brake switch and ABS HU/CM terminal N

•  Brake switch malfunction

•  Poor connection at connectors (female terminal)

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY OPEN OR SHORT CIRCUIT IN BRAKE SWITCH SIGNAL • Switch the ignition to ON. • Measure the voltage between the ABS HU/CM terminal N and body ground when the brake pedal is depressed and released: Voltage Brake pedal depressed: B+ Brake pedal released: 1 V or less • Is the voltage B+?	Yes	Go to Step 5.
1		No	If it is B+ under any condition, then go to the next step. If it is 1 V or less under any condition, then go to Step 3.
2	INSPECT BRAKE SWITCH SIGNAL FOR SHORT TO POWER SUPPLY CIRCUIT • Disconnect the brake switch connector. • Measure voltage between the brake switch connector terminal D (vehicle harness-side) and body ground. • Is the voltage 1 V or less?	Yes	Go to Step 4.
2		No	Repair or replace the wiring harness between the ABS HU/CM and brake switch, then go to Step 5
3	INSPECT BRAKE SWITCH SIGNAL FOR OPEN CIRCUIT • Disconnect the ABS HU/CM connector. • Disconnect the brake switch connector. • Inspect continuity between the ABS HU/CM connector terminal N (vehicle harness-side) and brake switch terminal D. • Is there continuity?	Yes	Go to the next step.
3		No	Repair or replace the wiring harness between the ABS HU/CM and brake switch, then go to Step 5.
4	INSPECT BRAKE SWITCH • Inspect the brake switch. (See BRAKE PEDAL INSPECTION.) • Is the brake switch normal?	Yes	Go to the next step.
4		No	Replace the brake switch, then go to the next step. (See BRAKE PEDAL REMOVAL/INSTALLATION.)
5	VERIFY THAT THE SAME DTC IS NOT PRESENT • Reconnect all disconnected connectors. • Clear the DTCs from the memory. (See ON-BOARD DIAGNOSIS [ABS].) • Start the engine and drive the vehicle at 15 km/h {9.3 mph} or more. • Are the same DTCs present?	Yes	Repeat the inspection from Step 1. If the malfunction recurs, replace the ABS HU/CM, then go to the next step. (See ABS HU/CM REMOVAL/INSTALLATION.)
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCS ARE PRESENT • Are any other DTCs output?	Yes	Go to the applicable DTC inspection. (See ON-BOARD DIAGNOSIS [ABS].)
6		No	DTC troubleshooting completed.

DTC	C0040:13/C0040:64		Brake switch
DETECTION CONDITION		• C0040:13 ― Open circuit in the wiring harness between the ABS HU/CM terminal and the brake switch terminal • C0040:64 ― Brake switch ON signal is input for 15 min or more when driving at a vehicle speed of 15 km/h {9.3 mph} or more.
POSSIBLE CAUSE		• Open or short circuit in wiring harness between the brake switch and ABS HU/CM terminal N • Brake switch malfunction • Poor connection at connectors (female terminal)
