CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER]

id0740a1807400

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(2)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX [G35M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX [G66M-R].) (See MANUAL TRANSAXLE SHIFT MECHANISM LOCATION INDEX [A26M-R].)

(4)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(5)  Center panel lower (See CENTER PANEL LOWER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

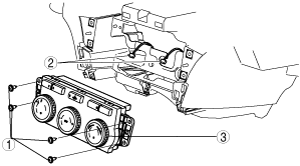

am6zzw00001092

1	Screw
2	Connector
3	Climate control unit

4.  Disconnect the climate control unit connectors and remove the climate control unit.

5.  Install in the reverse order of removal.
