DTC B1051:11 [BCM]

id0902f5414800

Description

• Windshield washer switch circuit malfunction

Detection Condition

• Short to ground in windshield washer switch circuit with the windshield washer switch off.

Possible Causes

• Wiper and washer switch connector or terminals malfunction

• Windshield washer switch malfunction

• BCM connector or terminals malfunction

• Short to ground in wiring harness between the following terminals:

― Wiper and washer switch terminal J—BCM terminal 3G (Vehicles with wiper and washer switch on right side)

― Wiper and washer switch terminal F—BCM terminal 3G (Vehicles with wiper and washer switch on left side)

• BCM malfunction

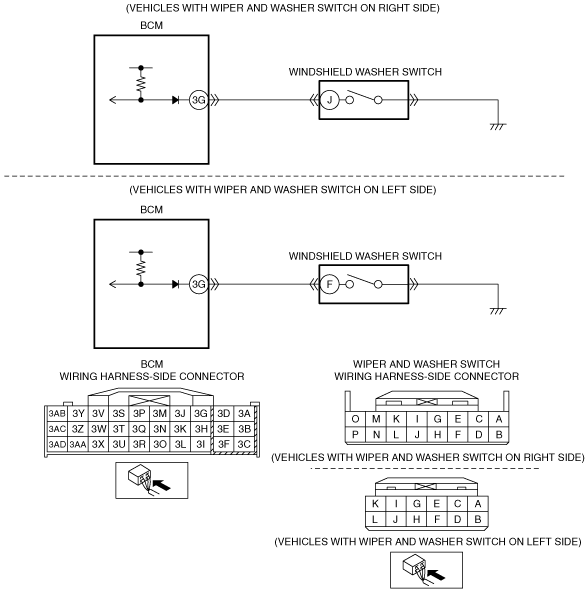

System Wiring Diagram

am6zzw00006953

Diagnostic Procedure

Step

Inspection

Action

1

PERFORM DTC INSPECTION

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1051:11 present?

Yes

Go to the next step.

No

DTC troubleshooting completed.

2

INSPECT WIPER AND WASHER SWITCH CONNECTOR CONDITION

•  Switch the ignition to off.

•  Disconnect the negative battery cable.

•  Disconnect the wiper and washer switch connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 6.

No

Go to the next step.

3

INSPECT WINDSHIELD WASHER SWITCH

•  Inspect the windshield washer switch.
(See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.)

•  Is there any malfunction?

Yes

Replace the wiper and washer switch, then go to Step 6.

(See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)

No

Go to the next step.

4

INSPECT BCM CONNECTOR CONDITION

•  Disconnect the BCM connector.

•  Inspect the connector and terminals (corrosion, damage, pin disconnection).

•  Is there any malfunction?

Yes

Repair or replace the connector or terminals, then go to Step 6.

No

Go to the next step.

5

INSPECT WINDSHIELD WASHER SWITCH CIRCUIT FOR SHORT TO GROUND

•  Wiper and washer switch and BCM connectors are disconnected.

•  Inspect for continuity between the following terminal (wiring harness-side) and body ground:

―  Wiper and washer switch terminal J (Vehicles with wiper and washer switch on right side)

―  Wiper and washer switch terminal F (Vehicles with wiper and washer switch on left side)

•  Is there continuity?

Yes

Repair or replace the wiring harness for a possible short to ground, then go to the next step.

No

Go to the next step.

6

VERIFY TROUBLESHOOTING COMPLETED

•  Make sure to reconnect all disconnected connectors.

•  Reconnect the negative battery cable.

•  Clear the DTCs using the M-MDS.
(See CLEARING DTC [BCM].)

•  Perform the BCM DTC inspection using the M-MDS.
(See DTC INSPECTION [BCM].)

•  Is the DTC B1051:11 present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the BCM.
(See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

7

VERIFY THAT NO OTHER DTCs ARE PRESENT

•  Are any DTCs present?

Yes

Go to the applicable DTC inspection.

(See DTC TABLE [BCM].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	PERFORM DTC INSPECTION • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1051:11 present?	Yes	Go to the next step.
1		No	DTC troubleshooting completed.
2	INSPECT WIPER AND WASHER SWITCH CONNECTOR CONDITION • Switch the ignition to off. • Disconnect the negative battery cable. • Disconnect the wiper and washer switch connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
2		No	Go to the next step.
3	INSPECT WINDSHIELD WASHER SWITCH • Inspect the windshield washer switch. (See WINDSHIELD WIPER AND WASHER SWITCH INSPECTION.) • Is there any malfunction?	Yes	Replace the wiper and washer switch, then go to Step 6. (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.)
3		No	Go to the next step.
4	INSPECT BCM CONNECTOR CONDITION • Disconnect the BCM connector. • Inspect the connector and terminals (corrosion, damage, pin disconnection). • Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 6.
4		No	Go to the next step.
5	INSPECT WINDSHIELD WASHER SWITCH CIRCUIT FOR SHORT TO GROUND • Wiper and washer switch and BCM connectors are disconnected. • Inspect for continuity between the following terminal (wiring harness-side) and body ground: ― Wiper and washer switch terminal J (Vehicles with wiper and washer switch on right side) ― Wiper and washer switch terminal F (Vehicles with wiper and washer switch on left side) • Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to the next step.
5		No	Go to the next step.
6	VERIFY TROUBLESHOOTING COMPLETED • Make sure to reconnect all disconnected connectors. • Reconnect the negative battery cable. • Clear the DTCs using the M-MDS. (See CLEARING DTC [BCM].) • Perform the BCM DTC inspection using the M-MDS. (See DTC INSPECTION [BCM].) • Is the DTC B1051:11 present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the BCM. (See BODY CONTROL MODULE (BCM) REMOVAL/INSTALLATION.) Go to the next step.
6		No	Go to the next step.
7	VERIFY THAT NO OTHER DTCs ARE PRESENT • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [BCM].)
7		No	DTC troubleshooting completed.
