FOREWORD [CD PLAYER/CHANGER]

id0903e5826000

Troubleshooting Index

No.	Items	Symptom	Possible DTC
			With M-MDS	Without M-MDS (On-board diagnostic test mode)
1	CD player/changer	NO.1 CD PLAYER/CHANGER DOES NOT LOAD THE CD OR EJECTS THE CD IMMEDIATELY [CD PLAYER/CHANGER]	B1D19:79	Audio unit •  10:Er01 •  22:Er01 Car-navigation unit •  Device code 22/Error code 01
2		NO.2 CD PLAYER/CHANGER DOES NOT EJECT THE CD [CD PLAYER/CHANGER]	B1D19:79	Audio unit •  10:Er01 •  22:Er01 Car-navigation unit •  Device code 22/Error code 01
3		NO.3 CD PLAYER/CHANGER DOES NOT PLAY THE CD/NO SOUND [CD PLAYER/CHANGER]	B1D19:79	Audio unit •  10:Er01 •  22:Er01 Car-navigation unit •  Device code 22/Error code 01
4		NO.4 SOUND JUMPS [CD PLAYER/CHANGER]	—	—
5		NO.5 CD PLAYER/CHANGER SCRATCHES ON THE CD [CD PLAYER/CHANGER]	B1188:64	Audio unit •  10:Er07 •  22:Er07 Car-navigation unit •  Device code 22/Error code 07
6	CD changer	NO.6 DISC CHANGE IS INOPERATIVE [CD PLAYER/CHANGER]	B1188:64	Audio unit •  10:Er07 •  22:Er07 Car-navigation unit •  Device code 22/Error code 07
7	CD player/changer (MP3 /WMA (Windows media audio) formatted file payback function)	NO.7 CD PLAYER DOES NOT PLAY THE MP3/WMA-FORMATTED FILE [CD PLAYER/CHANGER]	B1188:64	Audio unit •  10:Er07 •  22:Er07 Car-navigation unit •  Device code 22/Error code 07
8		NO.8 MP3/WMA-FORMATTED FILE FOLDER SELECTION IS INOPERATIVE/TRACK SEARCH IS INOPERATIVE [CD PLAYER/CHANGER]	B1D19:71	Audio unit •  10:Er02 •  22:Er02 Car-navigation unit •  Device code 22/Error code 02
9		NO.9 CD PLAYER DOES NOT INDICATE THE MP3/WMA TITLE TEXT [CD PLAYER/CHANGER]	B1188:64, B1D19:71	Audio unit •  10:Er02, 07 •  22:Er02, 07 Car-navigation unit •  Device code 22/Error code 02, 07
10		NO.10 CD PLAYER DOES NOT PLAY THE AUDIO DATA (CDDA) [CD PLAYER/CHANGER]	B1188:64, B1D19:71	Audio unit •  10:Er02, 07 •  22:Er02, 07 Car-navigation unit •  Device code 22/Error code 02, 07
11	CD player/changer	NO.11 TRACK CHANGE IS INOPERATIVE [CD PLAYER/CHANGER]	B1D19:71	Audio unit •  10:Er02 •  22:Er02 Car-navigation unit •  Device code 22/Error code 02

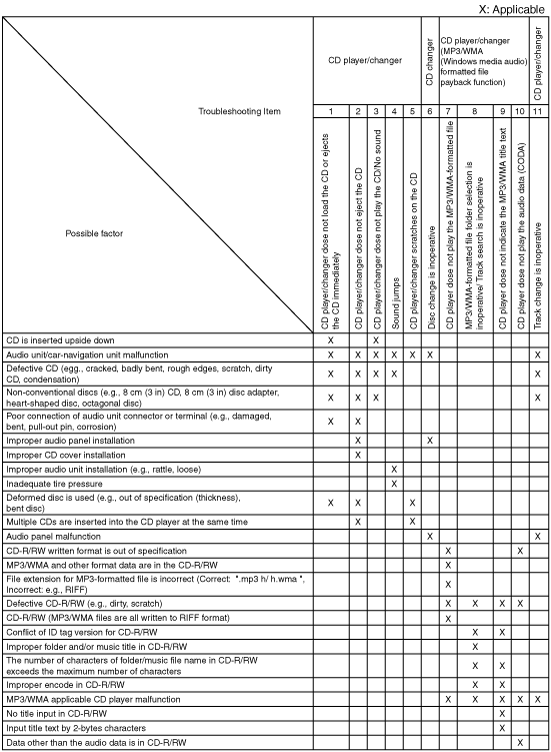

am6zzw00005379
