SEAL PLATE REMOVAL/INSTALLATION

id091000889000

Right-side

1. Disconnect the negative battery cable.

2. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION)

3. Remove the energy-absorbing form. (See ENERGY-ABSORBING FORM REMOVAL/INSTALLATION)

4. Remove the front crossmember extension. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION)

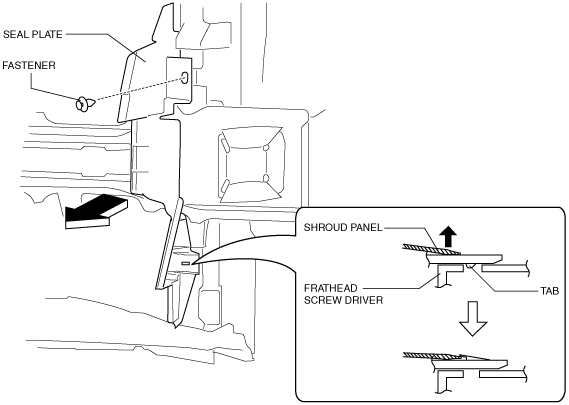

5. Remove the fastener.

am6zzw00001239

6. Move the tab in the direction of the arrow shown in the figure using a flathead screwdriver and detach it from the shroud panel.

7. Remove the seal plate in the direction of the arrow shown in the figure.

8. Install in the reverse order of remove.

Left-side
