FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION


id091400435200


Fuel-filler Lid Opener


L.H.D.

1.  Open the fuel-filler lid.

2.  Remove the following parts:

(1)  Rear scuff plate (driver's seat) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear seat cushion(4SD) (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
(3)  Rear seat back(4SD) (See REAR SEAT BACK REMOVAL/INSTALLATION [4SD].)
(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim(5HB, WGN)(See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (driver's side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove the nut.

am6zzw00000611

4.  Pull out the fuel-filler lid opener in the direction of the arrow (1).

am6zzw00000839

5.  Disconnect the fuel-filler lid opener from the fuel-filler lid opener cable.

am6zzw00000840

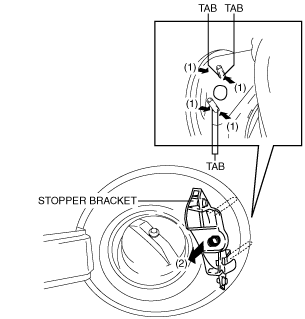

6.  Remove the stopper bracket in the direction of the arrow (2) shown in the figure while pressing the stopper bracket tabs in the direction of the arrow (1). Remove the stopper bracket.

am6zzw00003473

7.  Install in the reverse order of removal.


R.H.D.

1.  Open the fuel-filler lid.

2.  Remove the following parts:

(1)  Rear scuff plate (passenger’s seat) (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Rear seat cushion(4SD) (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
(3)  Rear seat back(4SD) (See REAR SEAT BACK REMOVAL/INSTALLATION [4SD].)
(4)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
(5)  Trunk side upper trim(5HB, WGN)(See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
(6)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
(7)  Trunk side trim (passenger’s side) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove the nut..

am6zzw00000611

4.  Pull out the fuel-filler lid opener in the direction of the arrow (1).

am6zzw00000839

5.  Disconnect the fuel-filler lid opener from the fuel-filler lid opener cable.

am6zzw00000840

6.  Remove the stopper bracket in the direction of the arrow (2) shown in the figure while pressing the stopper bracket tabs in the direction of the arrow (1). Remove the stopper bracket.

am6zzw00003473

7.  Install in the reverse order of removal.


Fuel-filler Lid Opener Lever

1.  Remove the fuel-filler lid opener bezel. (See FUEL-FILLER LID OPENER BEZEL REMOVAL/INSTALLATION.)

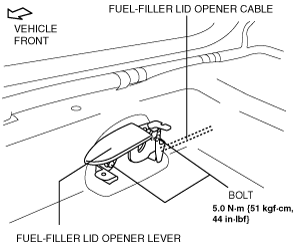

2.  Remove the bolts.

am6zzw00001289

3.  Disconnect the cable and fuel-filler lid opener lever.

4.  Install in the reverse order of removal.
