LIFTGATE GARNISH REMOVAL/INSTALLATION

id091600930500

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION)

3.  Remove the liftgate side trims. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION)

4.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION)

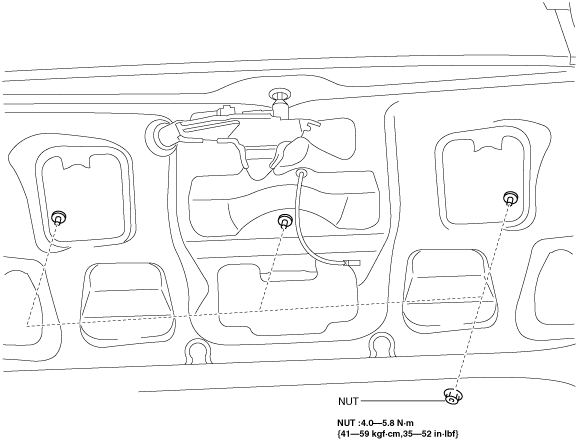

5.  Remove the nuts.

am6zzw00003411

6.  Disconnect the liftgate opener switch connector and request switch connector (vehicles with advanced key system).

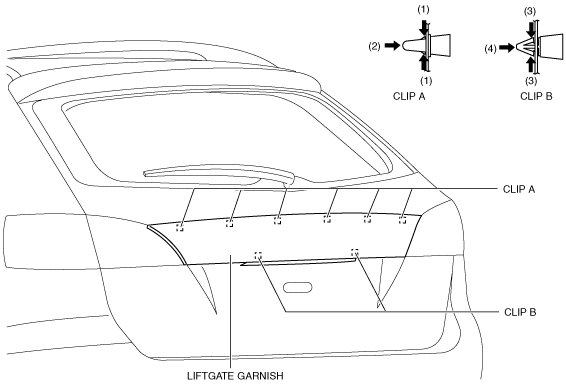

7.  Push the clips A in the direction of the arrow (1), (2) and clips B in the direction of the arrow (3), (4).

am6zzw00003412

8.  Remove the liftgate garnish while remove the clips A and B.

9.  Install in the reverse order of removal.
