REAR COMBINATION LIGHT REMOVAL/INSTALLATION

id091800801000

4SD, 5HB

1.  Disconnect the negative battery cable.

2.  Remove the trunk end trim. (4SD) (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Remove the trunk side trim. (4SD) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the service hole cover. (5HB)

5.  Remove in the order indicated in the table.

am6zzw00006045

1	Nut
2	Connector
3	Rear combination light
4	Rear turn light bulb socket
5	Rear turn light bulb
6	Brake/taillight bulb socket (bulb type only)
7	Brake/taillight bulb (bulb type only)

6.  Install in the reverse order of removal.

WGN

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(2)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  Trunk side upper trim (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

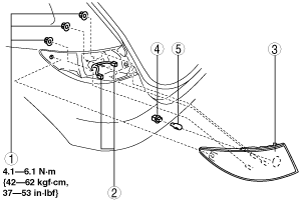

am6zzw00006046

1	Nut
2	Connector
3	Rear combination light
4	Rear turn light bulb socket
5	Rear turn light bulb

4.  Install in the reverse order of removal.
