GPS ANTENNA REMOVAL/INSTALLATION
id092000801500
1. Disconnect the negative battery cable.
2. Remove the following parts:
- (1) Front scuff plate (driver side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (2) Front side trim (driver side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
- (3) Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)
- (4) Decoration panel (diver side) (See DECORATION PANEL REMOVAL/INSTALLATION.)
- (5) Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
- (6) Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
- (7) Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
3. Remove in the order indicated in the table.

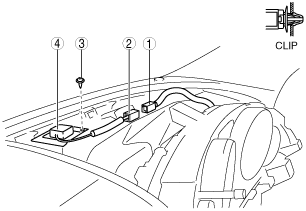

L.H.D.

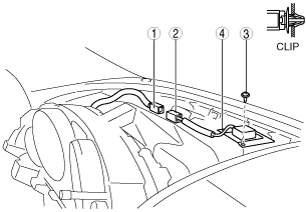

R.H.D.
|
1
|
Connector
|
|
2
|
Clip
|
|
3
|
Screw
|
|
4
|
GPS antenna
|
4. Install in the reverse order of removal.
