ANTENNA FEEDER NO.2 REMOVAL/INSTALLATION
id092000812300
1. Disconnect the negative battery cable.
2. Partially peel back the seaming welt.
3. Remove the following parts:
- (1) Sunroof seaming welt (vehicles with sunroof only)
- (2) A-pillar trims (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (4) Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (6) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (7) B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Rear seat cushion (4SD) (See REAR SEAT CUSHION REMOVAL/INSTALLATION [4SD].)
- (9) Rear side seat back (4SD) (See REAR SEAT BACK REMOVAL/INSTALLATION [4SD].)
- (10) Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)
- (11) Trunk side upper trim (5HB) (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)
- (12) Rear seat (5HB/WGN) (See REAR SEAT REMOVAL/INSTALLATION [5HB/WAGON].)
- (13) Lower anchor of the rear seat belt installation bolts (LH) (5HB/WGN) (See REAR SEAT BELT REMOVAL/INSTALLATION [5HB, WGN].)
- (14) C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (15) D-pillar trim (WGN) (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (16) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (17) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (18) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (19) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

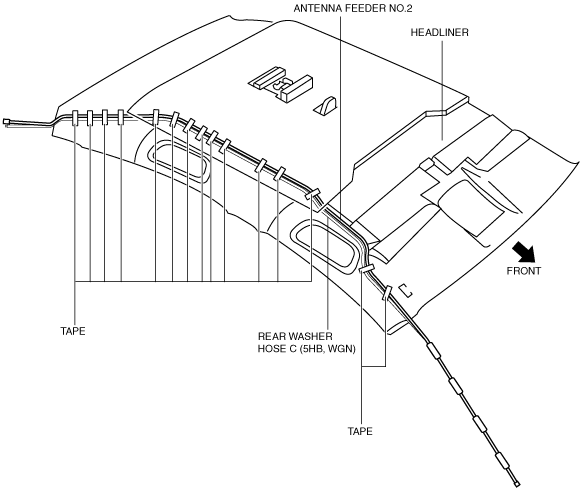

4. Remove the antenna feeder No.2.
5. Install in the reverse order of removal.
