RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

id0921000002z5

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (Driver side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Front side trim (Driver side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Upper panel (See UPPER PANEL REMOVAL/INSTALLATION.)

(4)  Decoration panel (Driver side) (See DECORATION PANEL REMOVAL/INSTALLATION.)

(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(6)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)

(7)  Relay block (See RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

3.  Verify that the continuity is as indicated in the table.

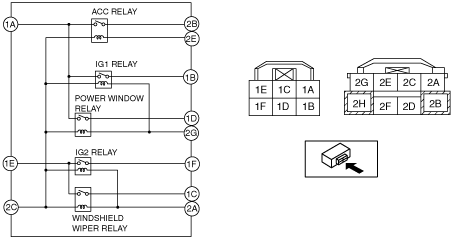

am6xuw00000020

•  If not as indicated in the table, replace the relay block.

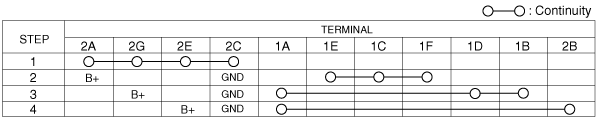

am6xuw00000021
