PUSH BUTTON START INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]


id0921008023z5

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front scuff plate (Driver side) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
(2)  Front side trim (Driver side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
(3)  Center panel upper (See CENTER PANEL UPPER REMOVAL/INSTALLATION.)
(4)  Decoration panel (Driver side) (See DECORATION PANEL REMOVAL/INSTALLATION.)
(5)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
(6)  Lower panel (See LOWER PANEL REMOVAL/INSTALLATION.)
(7)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)
(8)  Push button start (See PUSH BUTTON START REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM].)

3.  Verify that the continuity is as indicated in the table.

am6zzw00005390

•  If not as indicated in the table, replace the push button start.
am6xuw00000023

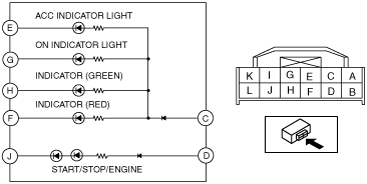

4.  Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates.

•  If the LEDs does not illuminate, replace the push button start.

Terminal

Illumination positions

B+

Ground

C
E
ACC indicator light
C
G
ON indicator light
C
H
Indicator (Green)
C
F
Indicator (Red)
D
J
START/STOP/ENGINE

am6zzw00005391
