PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200775000

Removal

4SD

1.  Disconnect the negative battery cable.

2.  Disconnect the parking sensor buzzer connector.

3.  Squeeze the cover tabs as shown in the figure.

am6zzw00001988

4.  Remove the cover and the parking sensor buzzer from the rear package member as a single unit.

am6zzw00001996

5.  Squeeze the parking sensor buzzer tabs as shown in the figure.

am6zzw00001989

6.  Remove the parking sensor buzzer from the cover.

am6zzw00001998

5HB

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

5.  Disconnect the parking sensor buzzer connector.

am6zzw00007257

6.  Squeeze the parking sensor buzzer tabs as shown in the figure.

7.  Remove the parking sensor buzzer from the liftgate inner panel.

Wagon

1.  Disconnect the negative battery cable.

2.  Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

3.  Remove the liftgate side trim. (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION.)

4.  Remove the recess. (See RECESS REMOVAL/INSTALLATION.)

5.  Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION.)

6.  Disconnect the parking sensor buzzer connector.

am6zzw00007266

7.  Squeeze the parking sensor buzzer tabs as shown in the figure.

8.  Remove the parking sensor buzzer from the liftgate inner panel.

Installation

4SD

1.  Install the parking sensor buzzer within a 45°to the left and right from the center of the parking sensor buzzer connector.

am6zzw00006209

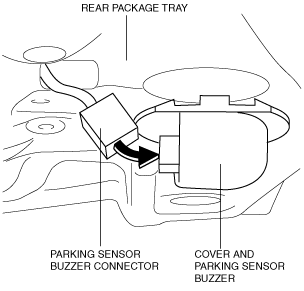

2.  Connect the parking sensor buzzer connector.

am6zzw00006210

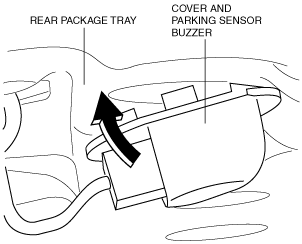

3.  Hook the two tabs positioned on the rear of the parking sensor buzzer to the rear package tray and install the remaining tabs to the rear package tray in the direction of the arrow shown in the figure.

am6zzw00006211

4.  Connect the negative battery cable.

5HB, Wagon

1.  Connect the parking sensor buzzer to the parking sensor buzzer connector, then install the parking sensor buzzer to the liftgate inner panel.

am6zzw00007268

2.  Connect the negative battery cable.
