EMISSION SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0116q5110100

Outline

• A single-nano catalyst has been adopted for the under-floor, three-way catalyst to improve emission gas purification efficiency.

Structural View

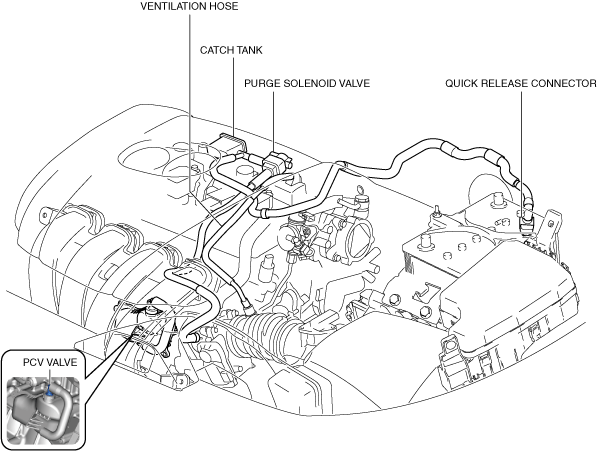

Engine compartment side

am6xun00004679

Exhaust system side

am6xun00004139

Fuel tank side

acmzzw00000148

System Diagram

am6zzn00005299

Vacuum Hose Routing Diagram

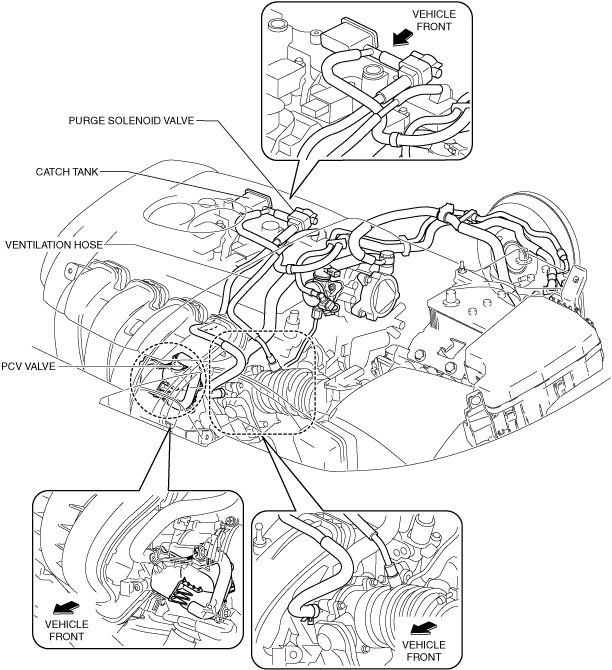

L.H.D.

am6xun00004681

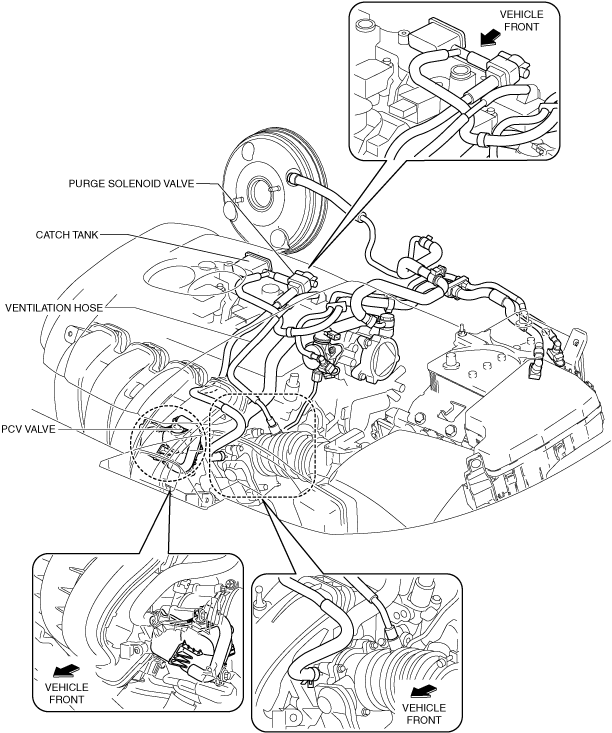

R.H.D.

am6zzn00005662

Structure

• The emission system consists of the following parts:

Part/System name	Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Positive crankcase ventilation system (See POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)	PCV valve	(See POSITIVE CRANKCASE VENTILATION (PCV) VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Evaporative emission control system (See EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)	Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Catch tank	(See CATCH TANK [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Check valve	(See CHECK VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Evaporative chamber	(See EVAPORATIVE CHAMBER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Quick release connector (emission system)	(See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

Specification

Item

Specification

Catalyst form

WU-TWC (monolith)

TWC (monolith)

EVAP control system

Charcoal canister type

PCV system

Closed type
