VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-D 2.2)]

id0411008016w9

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4.  Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

5.  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

6.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

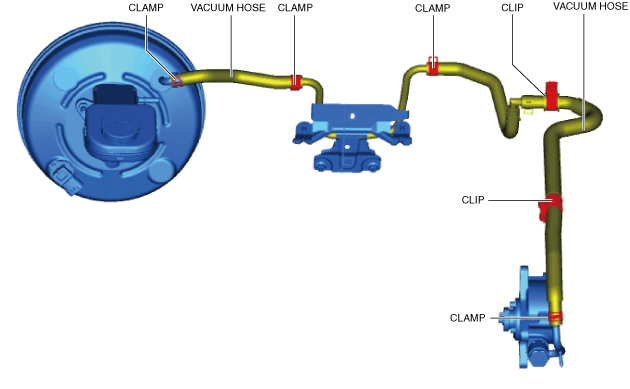

7.  Disconnect the vacuum hose from the clip.

am6zzw00016986

8.  Pinch open the clamps using pliers and disconnect the vacuum hoses.

9.  Install in the reverse order of removal. (See Vacuum Hose Installation Note.)

Vacuum Hose Installation Note

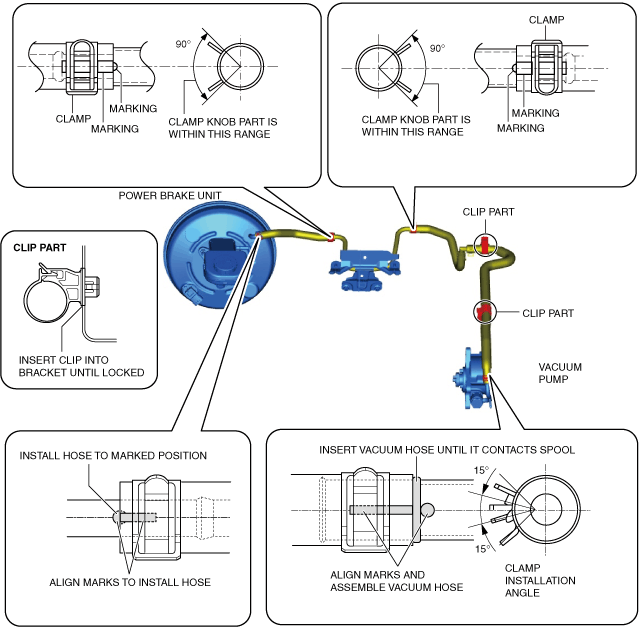

1.  Install the vacuum hoses as shown in the figure.

am6zzw00016987
