VACUUM HOSE REMOVAL/INSTALLATION [R.H.D. (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION))]

id0411008016y3

Between Intake Manifold and Vacuum Pump

1.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)

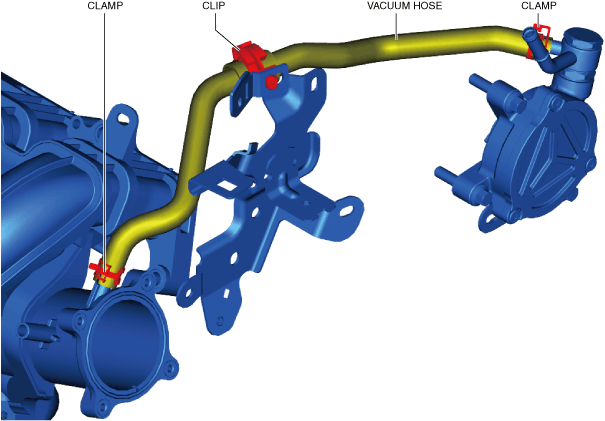

2.  Disconnect the vacuum hose from the clip.

ac5uuw00007495

3.  Pinch open the clamps using pliers and disconnect the vacuum hose.

4.  Install in the reverse order of removal. (See Vacuum hose (between intake manifold and vacuum pump) installation note.)

Vacuum hose (between intake manifold and vacuum pump) installation note

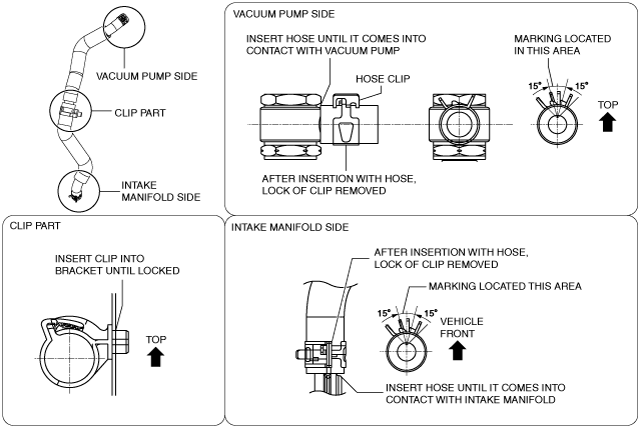

1.  Install the vacuum hose as shown in the figure.

am6zzw00016992

Between Vacuum Pump and Power Brake Unit

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

3.  Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION.)

4.  Remove the windshield wiper motor and link. (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

5.  Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION.)

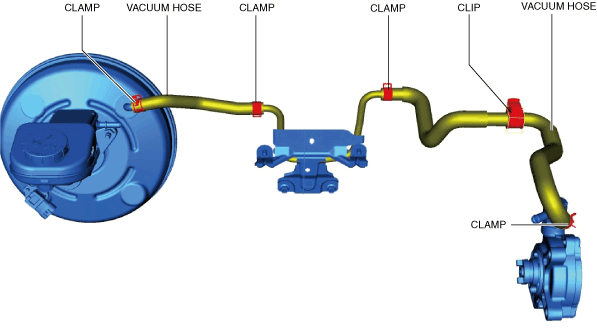

6.  Pinch open the clamps using pliers and disconnect the vacuum hoses.

am6zzw00016993

7.  Install in the reverse order of removal. (See Vacuum hose (between vacuum pump and power brake unit) installation note.)

Vacuum hose (between vacuum pump and power brake unit) installation note

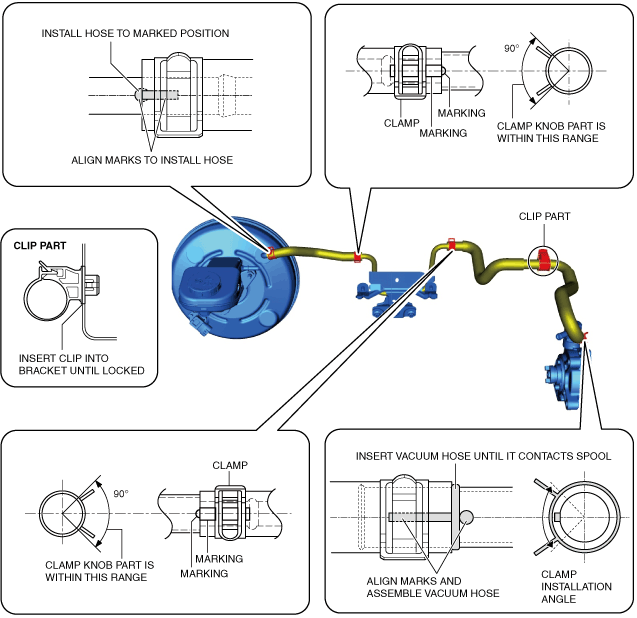

1.  Install the vacuum hoses as shown in the figure.

am6zzw00016994
