BLOWER FAN CONTROLLER REMOVAL/INSTALLATION

id071100006100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the blower fan controller connector.

am6xuw00009413

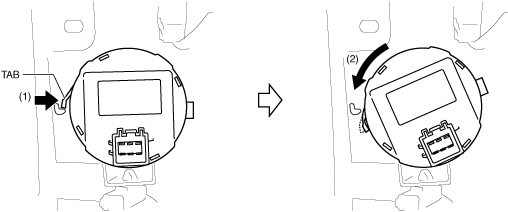

4.  Rotate the blower fan controller (2) while pressing the tab (1).

am6xuw00009414

5.  Remove the blower fan controller.

am6xuw00009415

6.  Install in the reverse order of removal.
