REAR HEAT DUCT REMOVAL/INSTALLATION

id071100800900

Driver’s side

1.  Slide the front seat rearward.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

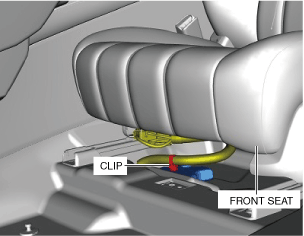

3.  Remove the clip.

am6xuw00009444

4.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(4)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

(5)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5.  Turn the floor covering over.

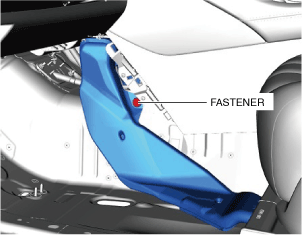

6.  Remove the fastener.

am6xuw00009445

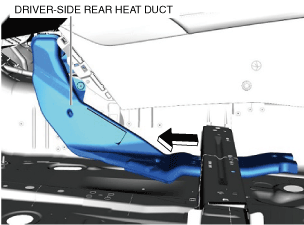

7.  Remove the driver-side rear heat duct in the direction of the arrow shown in the figure.

am6xuw00009446

8.  Install in the reverse order of removal.

Passenger’s side

1.  Slide the front seat rearward.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

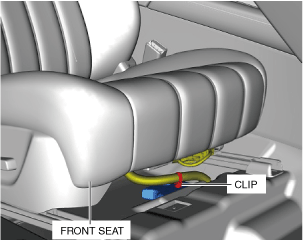

3.  Remove the clip.

am6xuw00009447

4.  Remove the following parts:

(1)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(3)  Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(4)  Passenger-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

5.  Turn the floor covering over.

6.  Remove the fastener.

am6xuw00009448

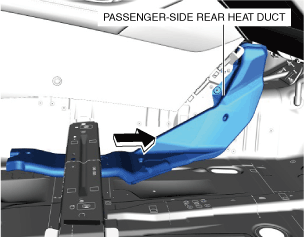

7.  Remove the passenger-side rear heat duct in the direction of the arrow shown in the figure.

am6xuw00009449

8.  Install in the reverse order of removal.
