AIR MIX ACTUATOR REMOVAL/INSTALLATION

id074000802400

L.H.D.

Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

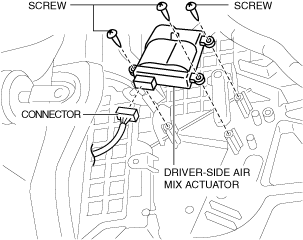

ac5uuw00007107

4.  Remove the screws.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

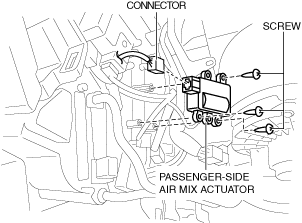

am6zzw00016085

4.  Remove the screws.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.

R.H.D.

Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(2)  Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

am6zzw00016086

4.  Remove the screws.

5.  Remove the driver-side air mix actuator.

6.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

(2)  Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(3)  Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION.)

3.  Disconnect the connector.

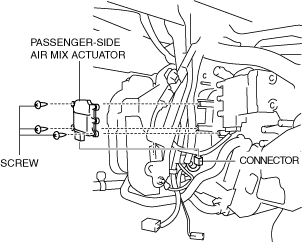

am6zzw00016087

4.  Remove the screws.

5.  Remove the passenger-side air mix actuator.

6.  Install in the reverse order of removal.
