FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000801000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Side step molding (See SIDE STEP MOLDING REMOVAL/INSTALLATION.)

(5)  Front fender molding (See FRONT FENDER MOLDING REMOVAL/INSTALLATION.)

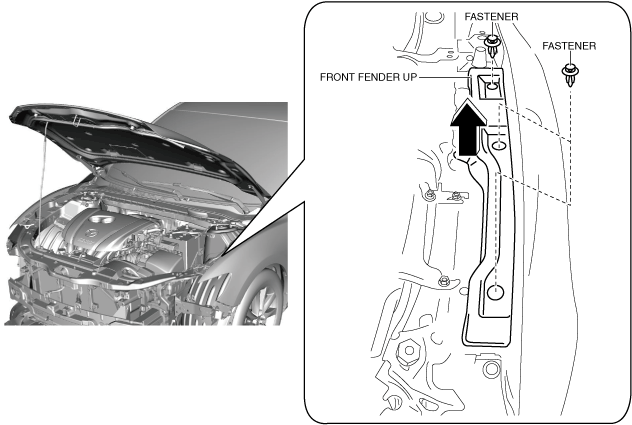

3.  Remove the fasteners.

am6zzw00015711

4.  Remove the front fender up in the direction of the arrow shown in the figure.

5.  Remove the bolts.

am6zzw00009427

6.  Remove the front fender panel.

7.  Install in the reverse order of removal.

8.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)
