SHROUD UPPER MEMBER REMOVAL/INSTALLATION

id091000889800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Set plate (See SET PLATE REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination light (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Horn (See HORN REMOVAL/INSTALLATION.)

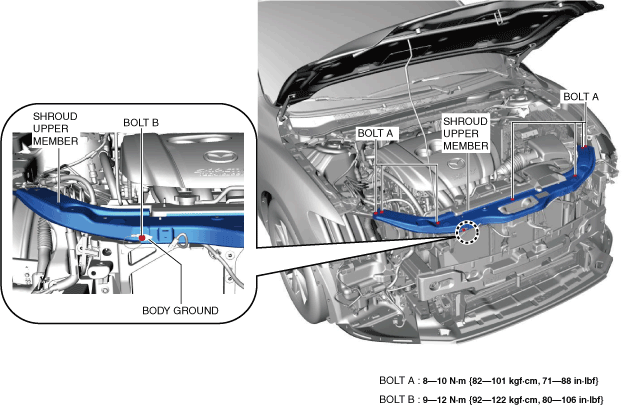

3.  Remove bolts A and B.

am6zzw00015782

4.  Remove the shroud upper member in the direction of the arrow shown in the figure.

am6zzw00011124

5.  Install in the reverse order of removal.

6.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)
