HORN REMOVAL/INSTALLATION

id092200012600

1.  Disconnect the negative battery tarminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the set plate. (See SET PLATE REMOVAL/INSTALLATION.)

3.  Remove the fresh-air duct installation bolts. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)])(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

5.  Disconnect the connector.

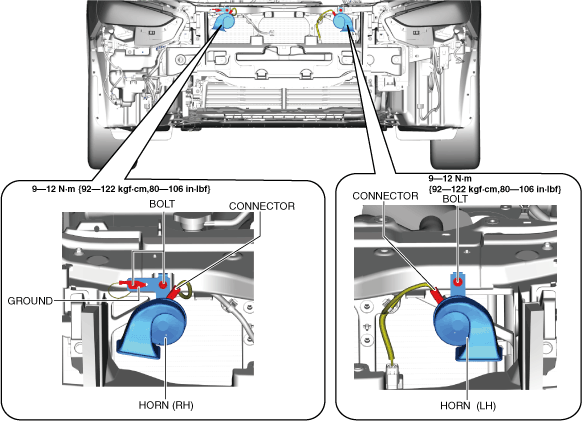

am6xuw00009635

6.  Remove the bolt.

7.  Remove the ground. (RH only)

8.  Remove the horn.

9.  Install in the reverse order of removal.
