D-PILLAR TRIM REMOVAL/INSTALLATION

id091700459300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

3.  Set the trunk side upper trim aside. (See TRUNK SIDE UPPER TRIM REMOVAL/INSTALLATION.)

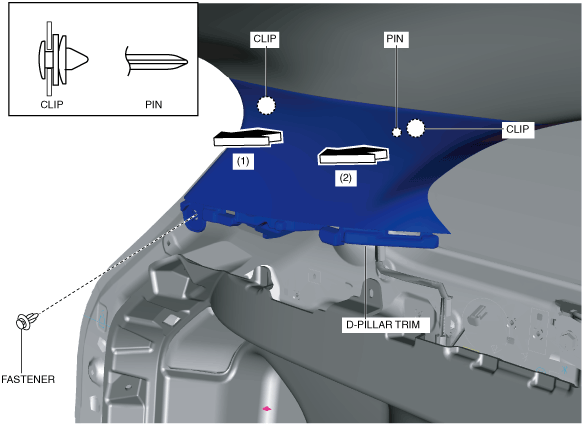

4.  Remove the fastener.

am6zzw00016754

5.  Pull the D-pillar trim in the direction of the arrow in the order of (1), (2) while detaching clips, pin.

6.  Install in the reverse order of removal.
