HAZARD WARNING SWITCH INSPECTION

id091800803100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Meter hood cover (See METER HOOD COVER REMOVAL/INSTALLATION.)

(2)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the hazard warning switch terminals is as indicated in the table.

am6zzw00017449

am6zzw00017450

•  If the continuity is as indicated in the table, go to the next step.

•  If not as indicated in the table, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)

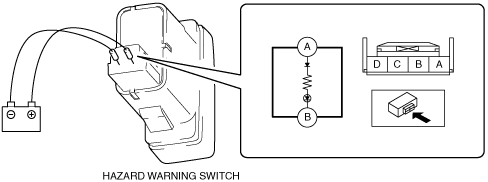

4.  Apply battery voltage to hazard warning switch terminal A, and connect terminal B to ground.

am6zzw00017451

5.  Verify that the LED illuminates.

•  If the LED does not illuminate, replace the hazard warning switch. (See HAZARD WARNING SWITCH REMOVAL/INSTALLATION.)
