AUDIO UNIT REMOVAL/INSTALLATION

id092000805500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(2)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

(3)  Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION.)

3.  Remove the bolt.

am6zzw00016396

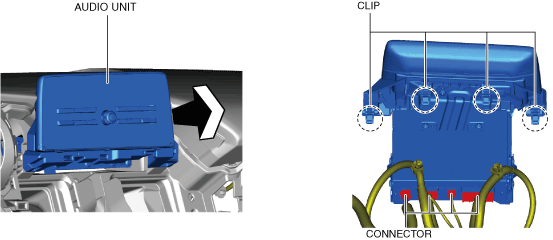

4.  Pull the audio unit in the order of arrows (1) and (2) shown in the figure, and detach clips from the dashboard.

am6zzw00016397

5.  Disconnect the connectors.

6.  Remove the audio unit.

7.  Install in the reverse order of removal.
