RELAY AND FUSE BLOCK REMOVAL/INSTALLATION

id092100498600

Replacement Part

Band

Quantity: 2

Location of use: Relay and fuse block

Removal

1. Verify the settings for the following.

• Clock and audio

• Position memory system

2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3. Remove the following parts.

(1) Air cleaner component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(2) PCM component (SKYACTIV-G 2.0/SKYACTIV-G 2.5) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See PCM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)

(3) Battery and battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

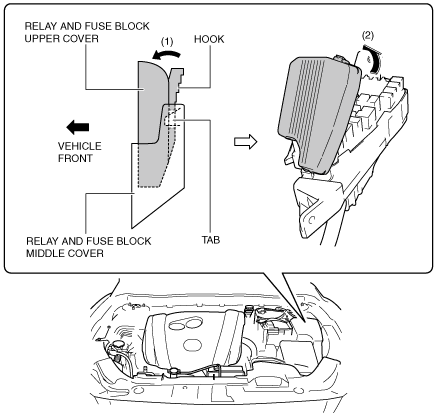

4. While pressing the relay and fuse block upper cover hook in the direction of the arrow (1) shown in the figure, lift up the relay and fuse block upper cover in the direction of the arrow (2) to detach the relay and fuse block upper cover hook from the relay and fuse block middle cover tab.

am6zzw00017746

5. Remove the relay and fuse block upper cover.

Caution

• If the relay and fuse block is removed with the relays and fuses installed, the area around the relay and fuse block may contact the relays or fuses and damage the them. Before removing the relay and fuse block, remove all the relays and fuses.

6. Remove all the relays and fuses.

7. Remove the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.)

8. While pressing the relay and fuse block hook in the direction of the arrow (1) shown in the figure, set the emission wiring harness away from the relay and fuse block hook.

am6xuw00010081

9. Disconnect the emission wiring harness connectors.

am6xuw00010082

10. Remove the nut and bolt.

am6xuw00010083

11. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.

am6xuw00010084

12. While pressing the clip tab of the relay and fuse block in the direction of the arrow (1) shown in the figure, pull the clip of the relay and fuse block in the direction of the arrow (2) to detach the clip tab of the relay and fuse block from the body.

am6xuw00010085

13. Pull out the relay and fuse block clip.

14. Pull out the relay and fuse block from the stud bolt and set it aside as shown in the figure.

am6xuw00010086

15. While pressing the clip tabs of front wiring harness protector No.2 in the direction of the arrows (1) shown in the figure, pull the clip of front wiring harness protector No.2 in the direction of the arrow (2) shown in the figure to detach the clip tabs of front wiring harness protector No.2 from the body.

am6xuw00010087

16. Pull out the front wiring harness protector No.2 clip.

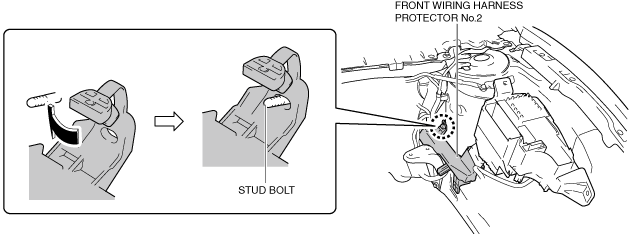

17. Lift up the front wiring harness protector No.2 cap in the direction of the arrow (1) shown in the figure.

am6xuw00010088

18. Pull out the front wiring harness protector No.2 from the stud bolt and set it aside as shown in the figure.

am6xuw00010089

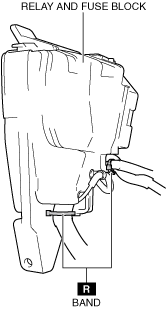

19. Cut the bands shown in the figure.

am6xuw00010090

20. Insert a flathead screwdriver into the gap between the relay and fuse block middle cover tabs and the relay and fuse block lower cover as shown in the figure.

am6xuw00010091

21. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull down the relay and fuse block lower cover in the direction of the arrow (2) shown in the figure to detach the relay and fuse block middle cover tab from the relay and fuse block lower cover.

am6xuw00010092

22. Detach all the relay and fuse block middle cover tabs from the relay and fuse block lower cover, and remove the relay and fuse block lower cover from the relay and fuse block middle cover.

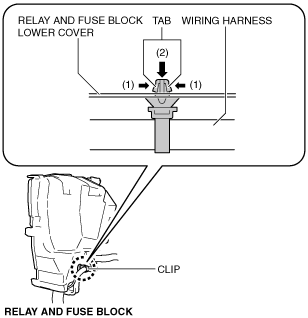

23. While pressing the wiring harness clip tabs in the direction of the arrows (1) shown in the figure, push out the wiring harness clip in the direction of the arrow (2) shown in the figure to detach the wiring harness clip tabs from the relay and fuse block lower cover.

am6xuw00010093

24. Pull out the wiring harness clip.

25. Insert a flathead screwdriver into the gap between the relay and fuse block middle cover and front wiring harness connector shown in the figure.

am6xuw00010094

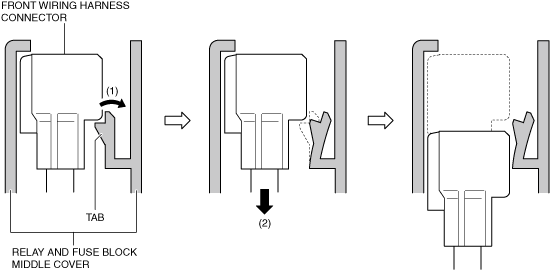

26. While pressing the relay and fuse block middle cover tab in the direction of the arrow (1) shown in the figure, pull out the front wiring harness connector in the direction of the arrow (2) shown in the figure.

am6xuw00010095

27. Insert the flathead screwdriver into the gap between the relay and fuse block middle cover and the relay and fuse block shown in the figure.

am6xuw00010096

28. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull up the relay and fuse block middle cover in the direction of the arrow (2) shown in the figure to detach the relay and fuse block tab from the relay and fuse block middle cover.

am6xuw00010097

29. Detach all the relay and fuse block tabs from the relay and fuse block middle cover, and remove the relay and fuse block middle cover.

30. Remove the bolt.

am6xuw00010098

31. Remove the ground.

32. Set the removed relay and fuse block aside so that it does not scratch the vehicle and parts.

Installation

1. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull the wiring harness in the direction of the arrow (2) while pressing the stopper to detach the relay or fuse terminal from the stopper.

am6xuw00010099

Caution

• If terminals are installed incorrectly, it could damage electrical accessories and burn wiring harnesses. When relocating terminals after replacing the relay and fuse block, line up the relay and fuse blocks of old and news parts and always verify each of the wiring harnesses in the wiring diagram so that the installation positions are correct.

am6xuw00010100

• A terminal disconnection could cause electronic components and the system to not operate normally due to poor contact. After terminal relocation, lightly pull the wiring harnesses to verify that they cannot be pulled out.

2. Relocate all relay and fuse terminals to the new relay and fuse block.

3. Install the ground.

am6xuw00010101

4. Install the bolt.

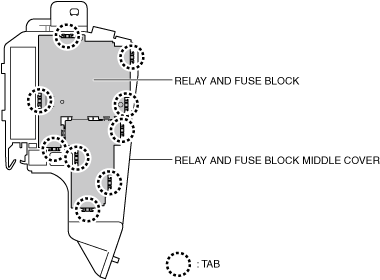

5. Install the relay and fuse block middle cover to the relay and fuse block.

am6xuw00010102

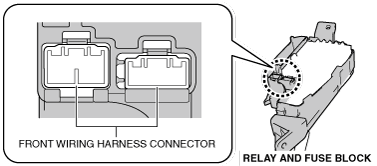

6. Install the front wiring harness connectors to the relay and fuse block middle cover.

am6xuw00010103

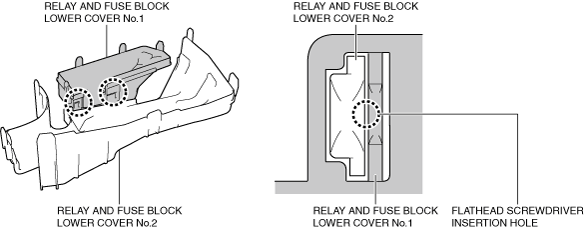

7. Insert a flathead screwdriver into the gap between relay and fuse block lower covers No.1 and 2 shown in the figure.

Note

• When installing the relay and fuse block lower cover to the relay and fuse block middle cover, the wiring harness could get caught between the relay and fuse block middle cover and the relay and fuse block lower cover resulting in open or short circuit in the wiring harness. When installing the relay and fuse block lower cover, disassemble the relay and fuse block lower cover and install one at a time.

am6zzw00016671

8. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull up relay and fuse block lower cover No.1 in the direction of the arrow (2) shown in the figure to detach the relay and fuse block lower cover No.1 tab from relay and fuse block lower cover No.2.

am6xuw00010105

9. Detach all the relay and fuse block lower cover No.1 tabs from relay and fuse block lower cover No.2, and disassemble the relay and fuse block lower cover.

10. Install the relay and fuse block lower cover No.1 and 2 to the relay and fuse block middle cover.

am6xuw00010106

11. Install the wiring harness clip to the relay and fuse block lower cover.

am6xuw00010107

12. Install the bands shown in the figure.

am6xuw00010090

13. Insert the front wiring harness protector No.2 into the stud bolt.

am6xuw00010108

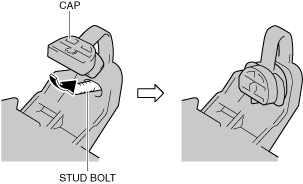

14. Insert the front wiring harness protector No.2 cap into the stud bolt.

am6xuw00010109

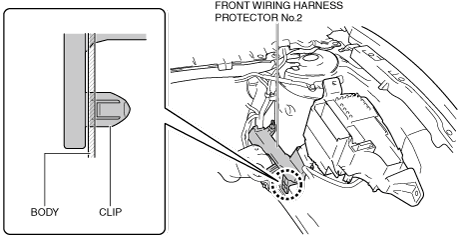

15. Install the front wiring harness protector No.2 clip to the body.

am6xuw00010110

16. Insert the relay and fuse block into the stud bolt.

am6xuw00010111

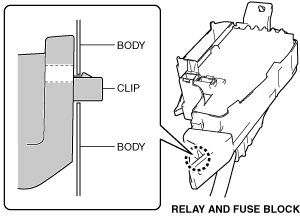

17. Insert the relay and fuse block clip into the body.

am6xuw00010112

18. Install the nut and bolt.

am6xuw00010113

19. Connect the emission wiring harness connectors.

am6xuw00010082

20. Press the emission wiring harness into the relay and fuse block hook.

am6xuw00010114

21. Install the front body control module (FBCM). (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION.)

22. Install all the relays and fuses.

23. Install the relay and fuse block upper cover .

am6xuw00010115

24. Install the following parts.

(1) Battery and battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

(3) Air cleaner component (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].) (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

25. Perform the "Verify Relay and Fuse Block Replacement". (See Verify Relay and Fuse Block Replacement.)

26. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

Verify Relay and Fuse Block Replacement

1. Temporarily connect the negative battery terminal to verify that the related wiring harness is not heated.

2. Switch the ignition ON (engine off).

3. Verify that the fuse is not burnt out and the related wiring harness is not heated.

4. Perform the initial settings for the following systems:

― i-stop system (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)

― Power window system (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE.)

― Sunroof system (See SUNROOF SYSTEM INITIALIZATION PROCEDURE.)

5. Return the following systems to the settings verified before replacing the relay and fuse block.

• Clock and audio

• Position memory system

6. Verify DTCs using the M-MDS.

• If a DTC is displayed, repair the malfunctioning part according to the corresponding DTC inspection.

― After completion of repairs, clear all DTCs stored in the module.

7. If there is no malfunction in Step 1, 3, and 6, start the engine and maintain the idle status.

8. Operate all the switches of the interior/exterior lights of the vehicle and verify that all the light bulbs illuminate and flash.

9. Operate the audio, climate control, wiper switch, and selector lever (ATX) and verify that they operate correctly.

10. Shift the selector lever to the P position, race the engine at approx. 3,000 rpm from engine idling, and verify that there is no malfunction. (ATX)

11. Perform a road test and verify that low speed, acceleration, shift-up, and shift-down conditions are normal. (ATX)
