DETERMINING SHORT TO GROUND LOCATION (MS-CAN) [SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.)]

id100256000900

Caution

•  Perform the following malfunction diagnosis only when it is diagnosed with a short to ground by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW [SKYACTIV-G 2.5T, SKYACTIV-D 2.2 (ATX) (R.H.D.)].)

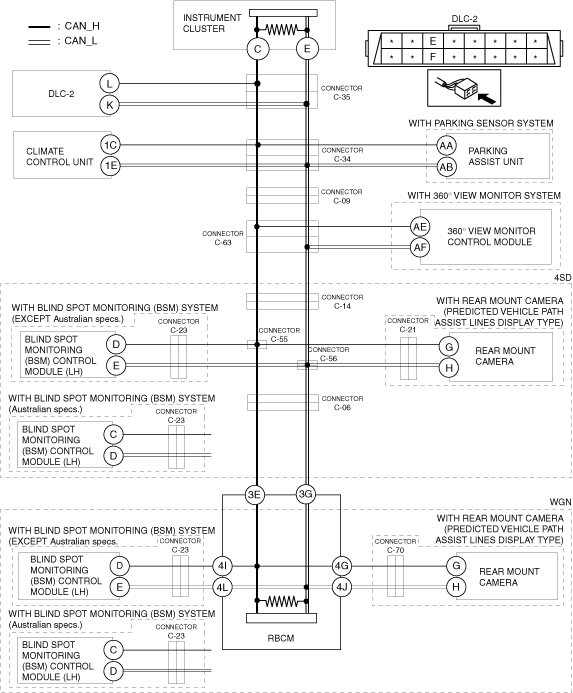

System Wiring Diagram

am6zzw00017220

Determination Procedure

Caution

•  When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

•  When inspecting the DLC-2, touch it with a paper clip or similar thin pin without directly inserting a tester into the terminals.

Step	Inspection		Action
1	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-35 AND REAR BODY CONTROL MODULE (RBCM) •  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) •  Disconnect connector C-35. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-35 and DLC-2 because the wiring harness is shorted to ground.
		No	Go to the next step.
2	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-35 AND INSTRUMENT CLUSTER •  Inspect for continuity at the following terminals: ―  Between instrument cluster terminal C and body ground ―  Between instrument cluster terminal E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 4.
3	INSPECT CAN LINE IN INSTRUMENT CLUSTER FOR SHORT TO GROUND •  Disconnect the instrument cluster connector. •  Inspect for continuity at the following terminals: ―  Between instrument cluster terminal C (wiring harness side) and body ground ―  Between instrument cluster terminal E (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the instrument cluster and connector C-35 because the wiring harness is shorted to ground.
		No	Replace the instrument cluster because there is a short to ground in the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)
4	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-34 AND CONNECTOR C-35 •  Disconnect connector C-34. •  Connect connector C-35. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-35 and connector C-34 because the wiring harness is shorted to ground.
		No	Go to the next step.
5	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-34 AND CLIMATE CONTROL UNIT •  Inspect for continuity at the following terminals: ―  Between climate control unit terminal 1C and body ground ―  Between climate control unit terminal 1E and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 7.
6	INSPECT CAN LINE IN CLIMATE CONTROL UNIT FOR SHORT TO GROUND •  Disconnect the climate control unit connector. •  Inspect for continuity at the following terminals: ―  Between climate control unit terminal 1C (wiring harness side) and body ground ―  Between climate control unit terminal 1E (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the climate control unit and connector C-34 because the wiring harness is shorted to ground.
		No	Replace the climate control unit because there is a short to ground in the climate control unit. (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
7	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-34 AND PARKING ASSIST UNIT •  Inspect for continuity at the following terminals: ―  Between parking assist unit terminal AA and body ground ―  Between parking assist unit terminal AB and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 9.
8	INSPECT CAN LINE IN PARKING ASSIST UNIT FOR SHORT TO GROUND •  Disconnect the parking assist unit connector. •  Inspect for continuity at the following terminals: ―  Between parking assist unit terminal AA (wiring harness side) and body ground ―  Between parking assist unit terminal AB (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the parking assist unit and connector C-34 because the wiring harness is shorted to ground.
		No	Replace the parking assist unit because there is a short to ground in the parking assist unit. (See PARKING ASSIST UNIT REMOVAL/INSTALLATION.)
9	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-34 AND CONNECTOR C-09 •  Disconnect connector C-09. •  Connect connector C-34. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-34 and connector C-09 because the wiring harness is shorted to ground.
		No	Go to the next step.
10	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-09 AND CONNECTOR C-63 •  Disconnect connector C-63. •  Connect connector C-09. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-09 and connector C-63 because the wiring harness is shorted to ground.
		No	Go to the next step.
11	INSPECT FOR SHORT TO GROUND BETWEEN 360° VIEW MONITOR CONTROL MODULE AND CONNECTOR C-63 •  Inspect for continuity at the following terminals: ―  Between 360° view monitor control module terminal AE and body ground ―  Between 360° view monitor control module terminal AF and body ground •  Is there continuity?	Yes	Go to the next step.
		No	•  Go to Step 13.(with 4SD) •  Go to Step 23.(with WGN)
12	INSPECT CAN LINE IN 360° VIEW MONITOR CONTROL MODULE FOR SHORT TO GROUND •  Disconnect the 360° view monitor control module connector. •  Inspect for continuity at the following terminals: ―  Between 360° view monitor control module terminal AE (wiring harness side) and body ground ―  Between 360° view monitor control module terminal AF (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the 360° view monitor control module and connector C-63 because the wiring harness is shorted to ground.
		No	Replace the 360° view monitor control module because there is a short to ground in the 360° view monitor control module. (See 360°VIEW MONITOR CONTROL MODULE REMOVAL/INSTALLATION.)
13	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-63 AND CONNECTOR C-14 •  Disconnect connector C-14. •  Connect connector C-63. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connector C-63 and connector C-14 because the wiring harness is shorted to ground.
		No	Go to the next step.
14	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-14 AND CONNECTORS C-55, C-56 •  Disconnect connectors C-55, C-56. •  Connect connector C-14. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connectors C-55, C-56 and connector C-14 because the wiring harness is shorted to ground.
		No	Go to the next step.
15	INSPECT FOR SHORT TO GROUND BETWEEN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) AND CONNECTORS C-55, C-56 •  Inspect for continuity at the following terminals: ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal E and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal C and body ground (Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (Australian specs.) •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 18.
16	INSPECT FOR SHORT TO GROUND BETWEEN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) AND CONNECTOR C-23 •  Disconnect connector C-23. •  Inspect for continuity at the following terminals: ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal E and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal C and body ground (Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (Australian specs.) •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between connectors C-55, C-56 and connector C-23 because the wiring harness is shorted to ground.
17	INSPECT CAN LINE IN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) FOR SHORT TO GROUND •  Disconnect the blind spot monitoring (BSM) control module (LH) connector. •  Inspect for continuity at the following terminals: ―  Between blind spot monitoring (BSM) control module (LH) terminal D (wiring harness side) and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal E (wiring harness side) and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal C (wiring harness side) and body ground (Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal D (wiring harness side) and body ground (Australian specs.) •  Is there continuity?	Yes	Repair or replace the wiring harness between the blind spot monitoring (BSM) control module (LH) and connector C-23 because the wiring harness is shorted to ground.
		No	Replace the blind spot monitoring (BSM) control module (LH) because there is a short to ground in the blind spot monitoring (BSM) control module (LH). (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION [Australian specs.].) (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION [Except Australian specs.].)
18	INSPECT FOR SHORT TO GROUND BETWEEN REAR MOUNT CAMERA AND CONNECTORS C-55,C-56 •  Inspect for continuity at the following terminals: ―  Between rear mount camera terminal G and body ground ―  Between rear mount camera terminal H and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 21.
19	INSPECT FOR SHORT TO GROUND BETWEEN REAR MOUNT CAMERA AND CONNECTOR C-21 •  Disconnect connector C-21. •  Inspect for continuity at the following terminals: ―  Between rear mount camera terminal G and body ground ―  Between rear mount camera terminal H and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between the connectors C-55,C-56 and connector C-21 because the wiring harness is shorted to ground.
20	INSPECT CAN LINE IN REAR MOUNT CAMERA FOR SHORT TO GROUND •  Disconnect the rear mount camera connector. •  Inspect for continuity at the following terminals: ―  Between rear mount camera terminal G (wiring harness side) and body ground ―  Between rear mount camera terminal H (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the rear mount camera and connector C-21 because the wiring harness is shorted to ground.
		No	Replace the rear mount camera because there is a short to ground in the rear mount camera. (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)
21	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-06 AND CONNECTORS C-55,C-56 •  Disconnect connector C-06. •  Connect connectors C-55,C-56. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between connectors C-55,C-56 and connector C-06 because the wiring harness is shorted to ground.
		No	Go to the next step.
22	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-06 AND REAR BODY CONTROL MODULE (RBCM) •  Disconnect the rear body control module (RBCM) connector. •  Inspect for continuity at the following terminals: ―  Between rear body control module (RBCM) terminal 3E (wiring harness side) and body ground ―  Between rear body control module (RBCM) terminal 3G (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the rear body control module (RBCM) and connector C-06 because the wiring harness is shorted to ground.
		No	Replace the rear body control module (RBCM) because there is a short to ground in the rear body control module (RBCM). (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.)
23	INSPECT FOR SHORT TO GROUND BETWEEN CONNECTOR C-63 AND REAR BODY CONTROL MODULE (RBCM) •  Disconnect the rear body control module (RBCM) connector. •  Connect connector C-63. •  Inspect for continuity at the following terminals: ―  Between DLC-2 terminal L and body ground ―  Between DLC-2 terminal K and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the rear body control module (RBCM) and connector C-63 because the wiring harness is shorted to ground.
		No	Go to the next step.
24	INSPECT FOR SHORT TO GROUND BETWEEN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) AND REAR BODY CONTROL MODULE (RBCM) •  Inspect for continuity at the following terminals: ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal E and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal C and body ground (Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (Australian specs.) •  Is there continuity?	Yes	Go to the next step.
		No	Go to Step 27.
25	INSPECT FOR SHORT TO GROUND BETWEEN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) AND CONNECTOR C-23 •  Disconnect connector C-23. •  Inspect for continuity at the following terminals: ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal E and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal C and body ground (Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal D and body ground (Australian specs.) •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between the rear body control module (RBCM) and connector C-23 because the wiring harness is shorted to ground.
26	INSPECT CAN LINE IN BLIND SPOT MONITORING (BSM) CONTROL MODULE (LH) FOR SHORT TO GROUND •  Disconnect the blind spot monitoring (BSM) control module (LH) connector. •  Inspect for continuity at the following terminals: ―  Between blind spot monitoring (BSM) control module (LH) terminal D (wiring harness side) and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal E (wiring harness side) and body ground (except Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal C (wiring harness side) and body ground (Australian specs.) ―  Between blind spot monitoring (BSM) control module (LH) terminal D (wiring harness side) and body ground (Australian specs.) •  Is there continuity?	Yes	Repair or replace the wiring harness between the blind spot monitoring (BSM) control module (LH) and connector C-23 because the wiring harness is shorted to ground.
		No	Replace the blind spot monitoring (BSM) control module (LH) because there is a short to ground in the blind spot monitoring (BSM) control module (LH). (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION [Australian specs.].) (See BLIND SPOT MONITORING (BSM) CONTROL MODULE REMOVAL/INSTALLATION [Except Australian specs.].)
27	INSPECT FOR SHORT TO GROUND BETWEEN REAR MOUNT CAMERA AND REAR BODY CONTROL MODULE (RBCM) •  Inspect for continuity at the following terminals: ―  Between rear mount camera terminal G and body ground ―  Between rear mount camera terminal H and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Replace the rear body control module (RBCM) because there is a short to ground in the rear body control module (RBCM). (See REAR BODY CONTROL MODULE (RBCM) REMOVAL/INSTALLATION.)
28	INSPECT FOR SHORT TO GROUND BETWEEN REAR MOUNT CAMERA AND CONNECTOR C-70 •  Disconnect connector C-70. •  Inspect for continuity at the following terminals: ―  Between rear mount camera terminal G and body ground ―  Between rear mount camera terminal H and body ground •  Is there continuity?	Yes	Go to the next step.
		No	Repair or replace the wiring harness between the rear body control module (RBCM) and connector C-70 because the wiring harness is shorted to ground.
29	INSPECT CAN LINE IN REAR MOUNT CAMERA FOR SHORT TO GROUND •  Disconnect the rear mount camera connector. •  Inspect for continuity at the following terminals: ―  Between rear mount camera terminal G (wiring harness side) and body ground ―  Between rear mount camera terminal H (wiring harness side) and body ground •  Is there continuity?	Yes	Repair or replace the wiring harness between the rear mount camera and connector C-70 because the wiring harness is shorted to ground.
		No	Replace the rear mount camera because there is a short to ground in the rear mount camera. (See REAR MOUNT CAMERA REMOVAL/INSTALLATION.)
