i-stop CONTROL

id111100000100

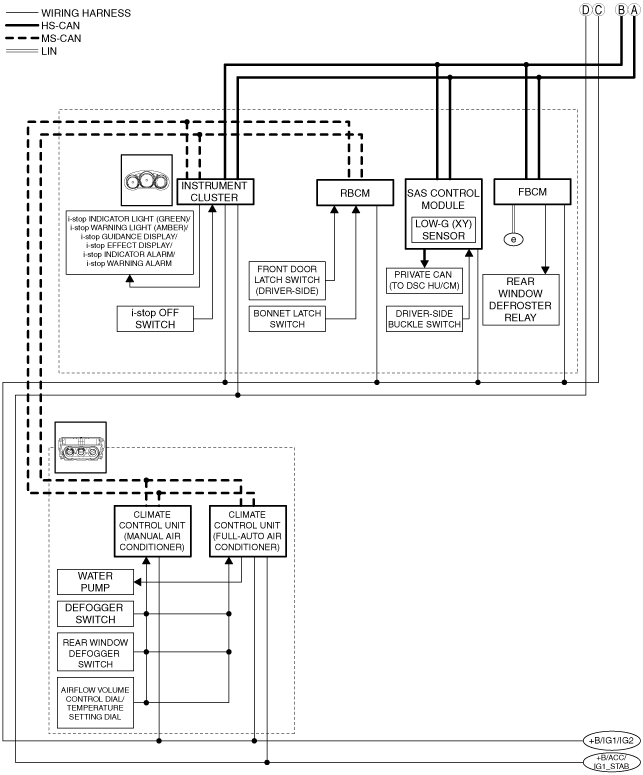

i-stop Control Outline


SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T

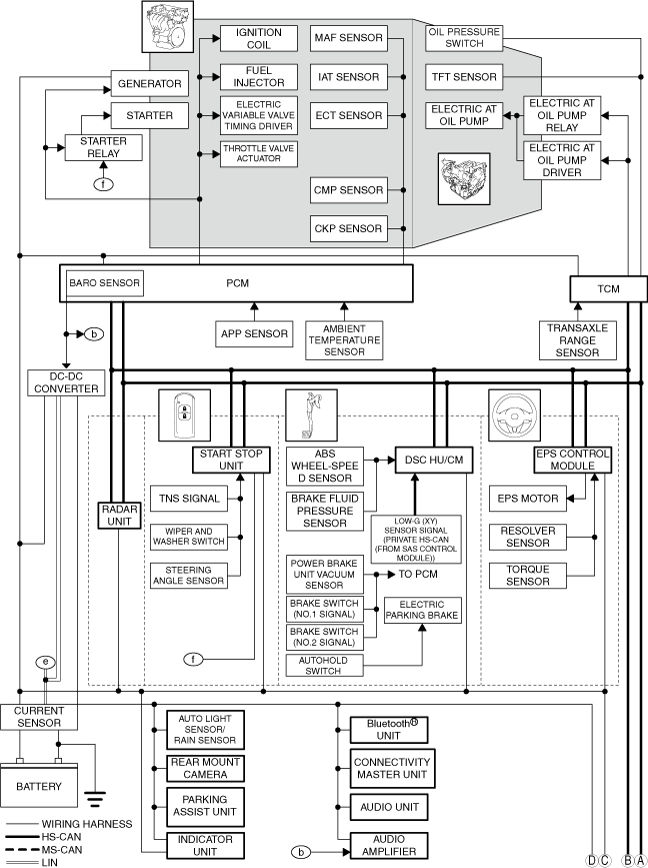

Without i-ELOOP (ATX)

ac5wzn00005065
am6zzn00004764

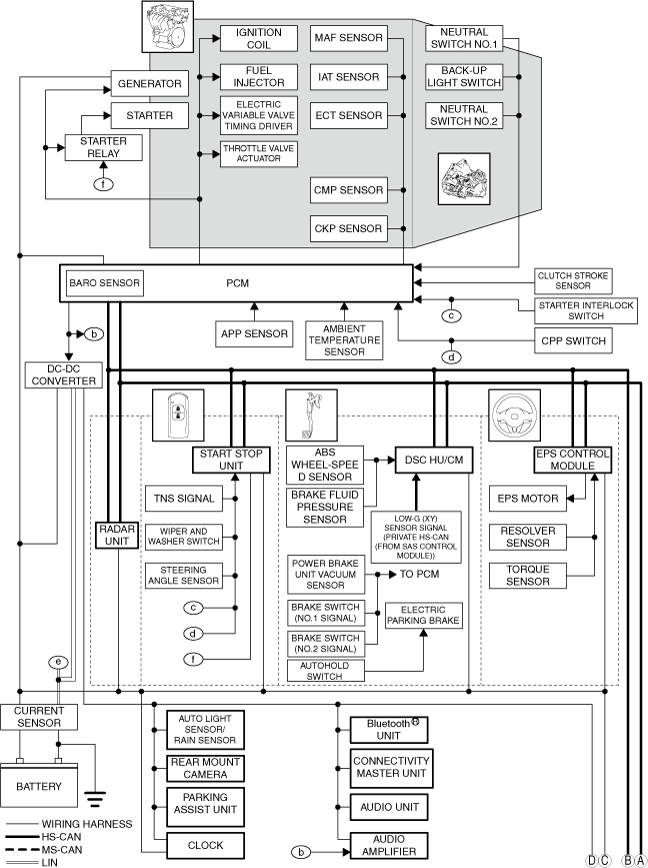

Without i-ELOOP (MTX)

ac5wzn00005066
am6zzn00004764

With i-ELOOP (ATX)

ac5wzn00005067
am6zzn00004764

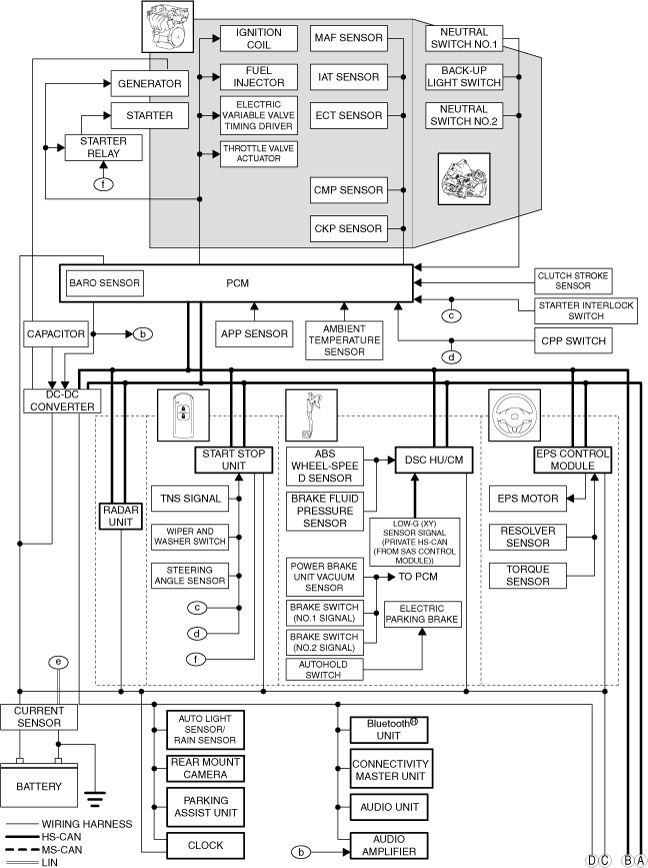

With i-ELOOP (MTX)

ac5wzn00005068
am6zzn00004764


SKYACTIV-D 2.2

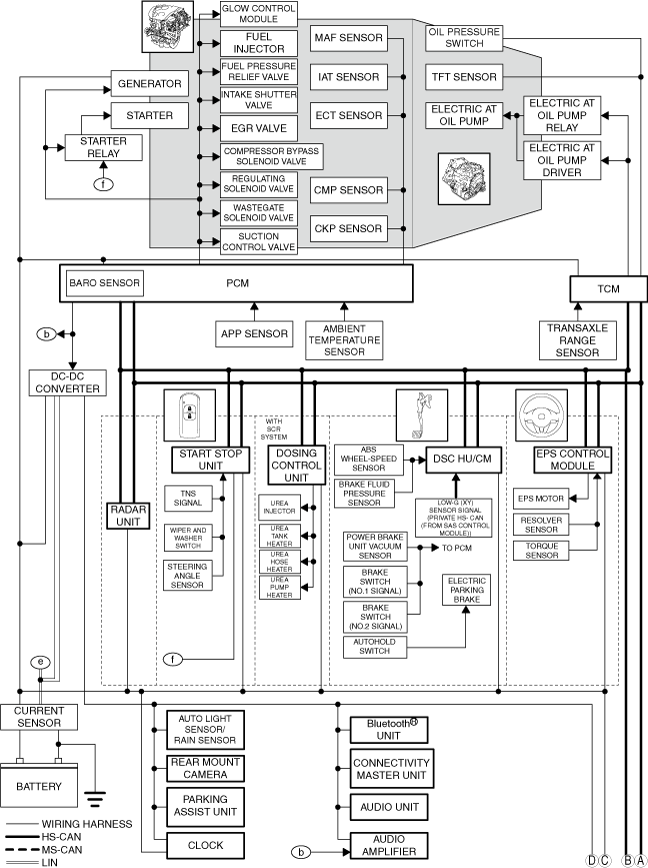

Without i-ELOOP (ATX)

ac5wzn00005069
am6zzn00004764

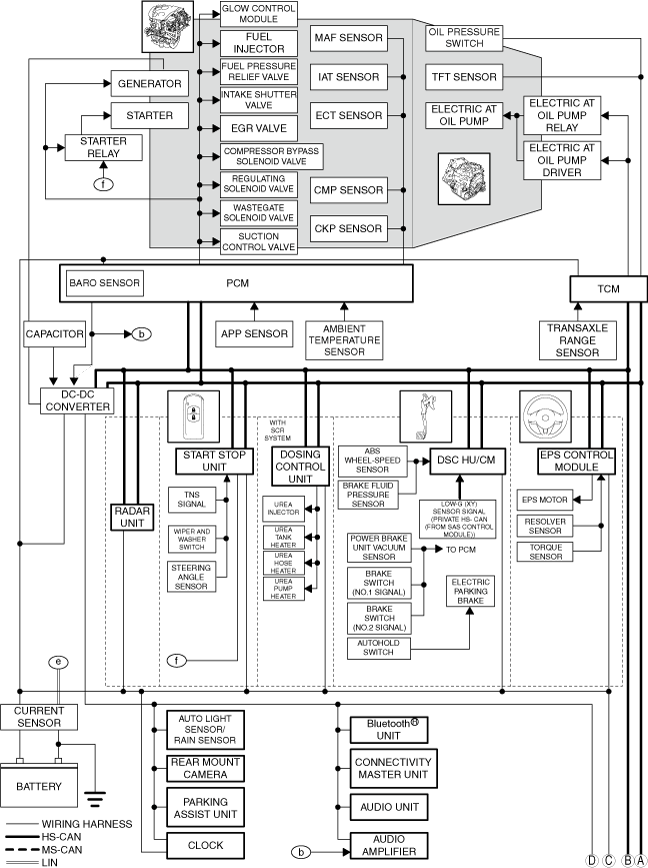

With i-ELOOP (ATX)

am6zzn00005731
am6zzn00004764

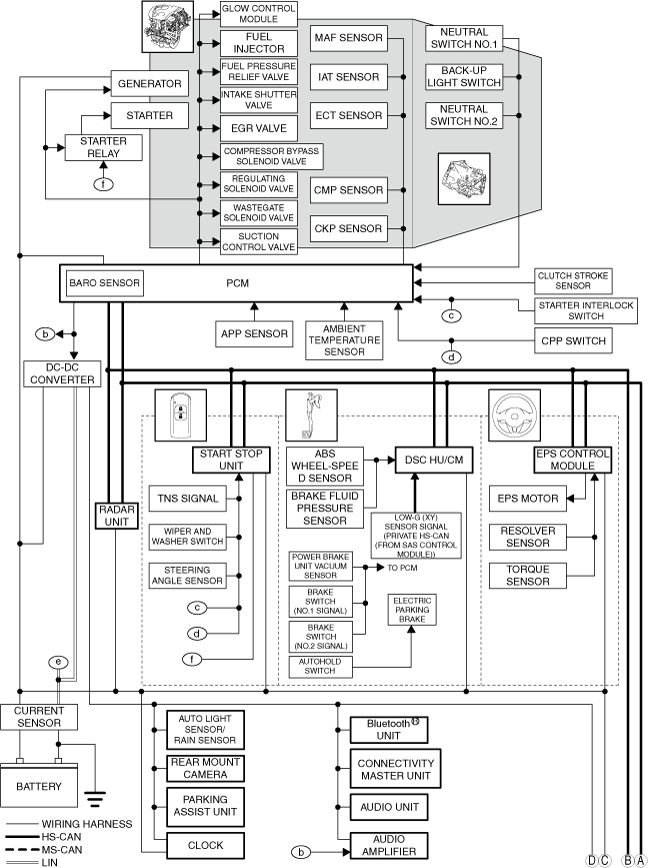

With i-ELOOP (MTX)

am6zzn00005732
am6zzn00004764


i-stop Control Modules

•  i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference
PCM
SKYACTIV-G 2.0, SKYACTIV-G 2.5, SKYACTIV-G 2.5T
(See i-stop CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
(See i-stop CONTROL [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See i-stop CONTROL [SKYACTIV-G 2.5T].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-G 2.5T].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5T].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T].)
(See i-stop INDICATOR ALARM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
(See i-stop INDICATOR ALARM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See i-stop INDICATOR ALARM [SKYACTIV-G 2.5T].)
(See i-stop WARNING ALARM [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)
(See i-stop WARNING ALARM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
(See i-stop WARNING ALARM [SKYACTIV-G 2.5T].)
SKYACTIV-D 2.2
(See i-stop CONTROL [SKYACTIV-D 2.2].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
(See i-stop INDICATOR ALARM [SKYACTIV-D 2.2].)
(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DSC HU/CM
(See HILL LAUNCH ASSIST (HLA).)
TCM
(See ELECTRIC AT OIL PUMP [FW6A-EL].)
(See ELECTRIC AT OIL PUMP [GW6A-EL, GW6AX-EL].)
Start stop unit
(See START STOP UNIT.)
EPS control module
(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
Climate control unit
(See CLIMATE CONTROL UNIT.)
SAS control module
(See SAS CONTROL MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See SAS CONTROL MODULE [STANDARD DEPLOYMENT CONTROL SYSTEM].)
Instrument cluster
(See INSTRUMENT CLUSTER.)
Front body control module (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM).)
Rear body control module (RBCM)
(See REAR BODY CONTROL MODULE (RBCM).)
