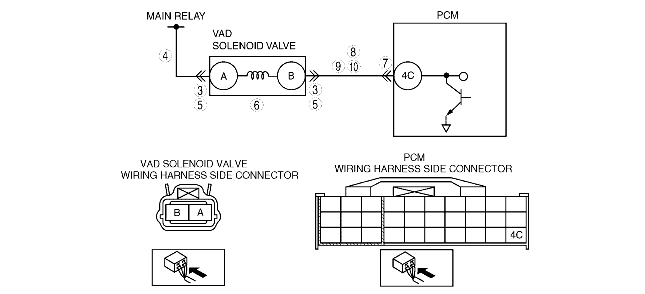

Diagnostic procedure
|
STEP
|
INSPECTION
|
ACTION
|
|
|---|---|---|---|
|
1
|
PERFORM DTC CONFIRMATION PROCEDURE
• Perform the DTC CONFIRMATION PROCEDURE.
• Is the same DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
Intermittent concern exists. Go to the INTERMITTENT CONCERN TROUBLESHOOTING procedure.
|
||
|
2
|
CLASSIFY POWER CIRCUIT OR CONTROL CIRCUIT MALFUNCTION
• Is the same DTC and P0102, P0103, P0403, P0661, P0662, P2009 or P2010 present?
|
Yes
|
Malfunction at power circuit. Go to the next step.
|
|
No
|
Malfunction at VAD solenoid valve or control circuit. Go to Step 5.
|
||
|
3
|
INSPECT VAD SOLENOID VALVE FOR POOR CONNECTION
• Disconnect the VAD solenoid valve connector.
• Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Are any malfunctions?
|
Yes
|
Repair the terminals, then go to Step 11.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT VAD SOLENOID VALVE POWER CIRCUIT for an open circuit CIRCUIT
• Turn the ignition switch to the ON position (Engine off).
• Measure the voltage between VAD solenoid valve connector terminal A and body ground.
• Is the voltage B+?
|
Yes
|
Inspect VAD solenoid valve.
• If there is a malfunction, replace the VAD solenoid valve, then go to Step 11.
• If there is no malfunction, go to Step 12.
|
|
No
|
Repair or replace the VAD solenoid valve power circuit for an open circuit, then go to Step 11.
|
||
|
5
|
INSPECT VAD SOLENOID VALVE FOR POOR CONNECTION
• Disconnect connector.
• Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Are any malfunctions?
|
Yes
|
Repair or replace the terminals, then go to Step 11.
|
|
No
|
Go to the next step.
|
||
|
6
|
INSPECT VAD SOLENOID VALVE
• Perform the VAD solenoid valve inspection.
• Is the clutch pedal position switch normal?
|
Yes
|
Go to Step 11.
|
|
No
|
Replace the VAD solenoid valve, then go to Step 11.
|
||
|
7
|
INSPECT PCM FOR POOR CONNECTION
• Disconnect the PCM connector.
• Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.).
• Are any malfunctions?
|
Yes
|
Repair the terminals, then go to Step 11.
|
|
No
|
Go to the next step.
|
||
|
8
|
INSPECT CONTROL CIRCUIT FOR SHORT TO GROUND
• Disconnect battery cables.
• Inspect for continuity between VAD solenoid valve terminal B and body ground.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a short to ground, then go to Step 11.
|
|
No
|
Go to the next step.
|
||
|
9
|
INSPECT VAD SOLENOID VALVE CONTROL CIRCUIT FOR SHORT TO POWER
• Measure the voltage between brake switch connector terminal B and body ground.
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness for a short to power, then go to Step 11.
|
|
No
|
Go to the next step.
|
||
|
10
|
INSPECT CONTROL CIRCUIT for an open circuit CIRCUIT
• Inspect for continuity between VAD solenoid valve terminal B and PCM terminal 4C.
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for an open circuit, then go to the next step.
|
||
|
11
|
VERIFY TROUBLESHOOTING OF DTC P1410 COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the PCM memory using the WDS or equivalent.
• Perform the KOEO/KOER self-test.
(See KOEO/KOER SELF-TEST [LF, L3].)
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
12
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the "After Repair Procedure".
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC troubleshooting.
(See DTC TABLE [LF, L3].)
|
|
No
|
Troubleshooting completed.
|
||
