EMISSION SYSTEM [SKYACTIV-D 2.2]

id0116e1110100

Outline

• Diesel particulate elimination equipment (Diesel Particulate Filter) has been adopted which eliminates PM from the exhaust gas.

Structural View

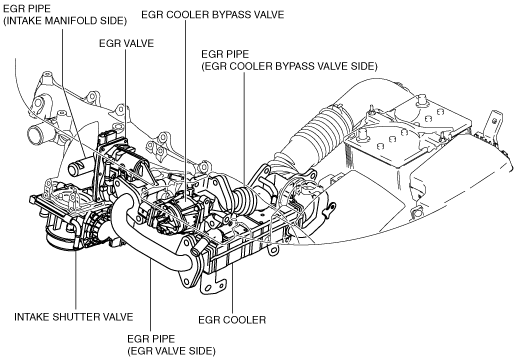

Engine compartment side

ac5wzn00001927

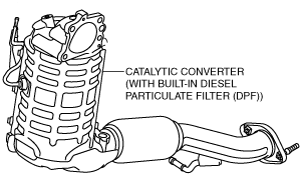

Exhaust system side

ac5wzn00001928

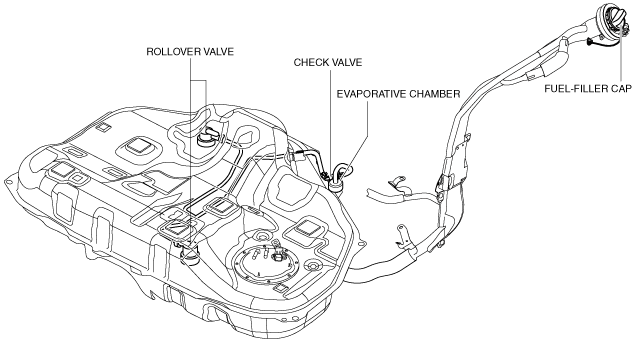

Fuel tank side

am6zzn00002487

System Diagram

ac5wzn00001932

Vacuum Hose Routing Diagram

L.H.D.

am6zzn00002488

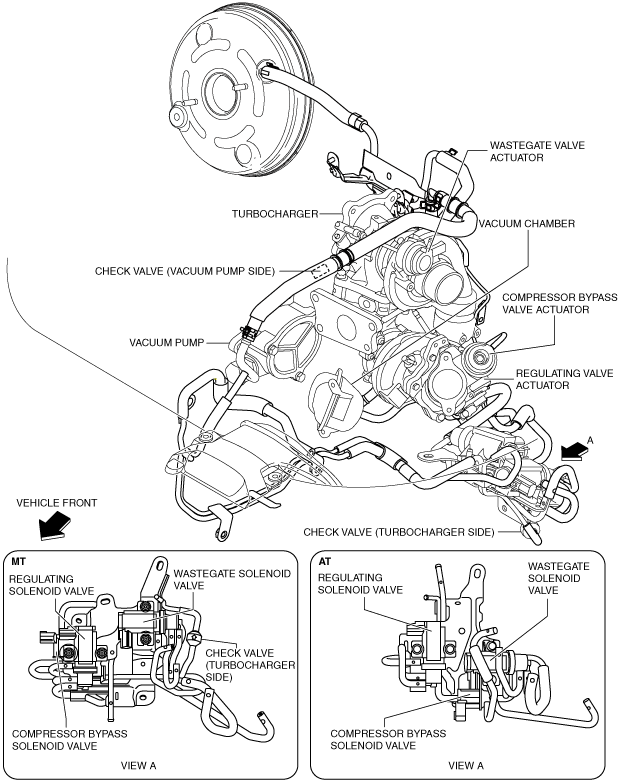

R.H.D.

am6zzn00002489

Structure

• The emission system consists of the following parts:

Part/System name		Reference
Exhaust gas purification system (See EXHAUST GAS PURIFICATION SYSTEM [SKYACTIV-D 2.2].)	Catalytic converter	(See CATALYTIC CONVERTER [SKYACTIV-D 2.2].)
Exhaust gas recirculation system (See EXHAUST GAS RECIRCULATION SYSTEM [SKYACTIV-D 2.2].)	EGR valve	(See EGR VALVE [SKYACTIV-D 2.2].)
	EGR cooler	(See EGR COOLER [SKYACTIV-D 2.2].)
	EGR cooler bypass valve	(See EGR COOLER BYPASS VALVE [SKYACTIV-D 2.2].)
Fuel-filler cap		(See FUEL-FILLER CAP [SKYACTIV-D 2.2].)
Rollover valve		(See ROLLOVER VALVE [SKYACTIV-D 2.2].)
Check valve		(See CHECK VALVE [SKYACTIV-D 2.2].)
Diesel particulate filter		(See DIESEL PARTICULATE FILTER [SKYACTIV-D 2.2].)
Intake shutter valve		(See INTAKE SHUTTER VALVE [SKYACTIV-D 2.2].)
